Model:YMQ-800
Send Inquiry
| Technical parameter: |
| 1,effevice running size for stand noard:500*800mm 2,the pressure of die cutting:18T 3,the preesure in oil pump:16mpa 4,motor power:3kw 5,weight of machine:1000kg 6,dimensions of machine:1330*870*1450mm |
| Machinery characteristic: |

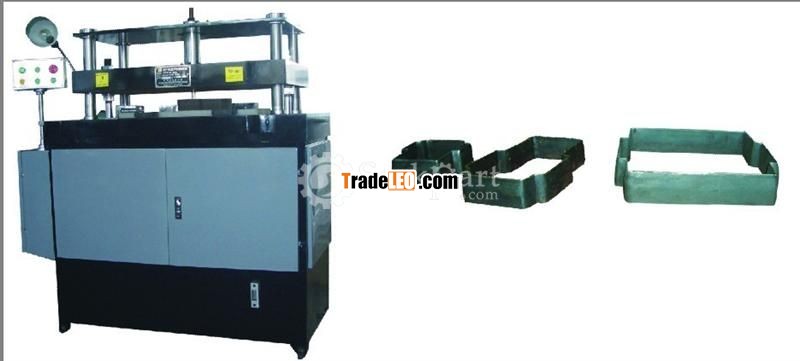

| YMQ-800 HYDRAULIC PATTERN DIE CUTTING MACHINE can paper to what shape you need by die,it has orientation,tiny adjustment,automatically,separating the paper from the die;automatically stop;four columns supporting structure;high efficiency;steady performance. |
| Cutting die sample: |
