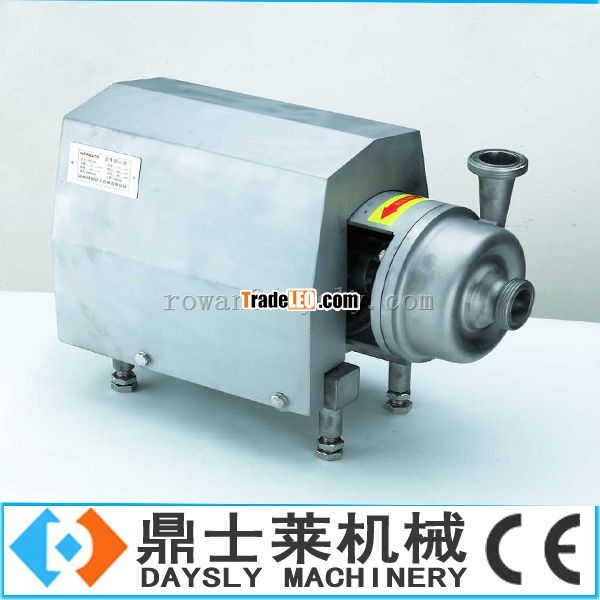

Centrifugal pump

Application: For food, pharmaceutical, chemical, biological industry.

1. Type : Open Impeller / Closed Impeller

2. Material : AISI 304, AISI316

3. Motor power : 0.55~22Kw(KS),0.55~7.5(BS)

4. Impeller rotary speed : 2900 rpm ( 50Hz )    3600 rpm ( 60Hz )

5. Capacity: 1.5~120 m3/h (KS)   1.5~40 m3/h (BS)

6. Head : 75 m ( KS ) , 36 m ( BS )

7. Maximum pressure : 7 Bar ( KS ) , 5 Bar ( BS )

8. Connection : Clamp thread , flange , welding

9. Connection standard : DIN , SMS , 3A , ISO , IDF , RJT

10. Motor Casing : Cold rolled stainless steel plate

11. Gasket : Viton , EPDM

12. Mechanical seal : SSC/Sic/EPDM

13. Internal surface : Ra ≤ 0.8 um

14. External surface : Mirror polish.
