Brand:D.King China
Model:FTT-350×*

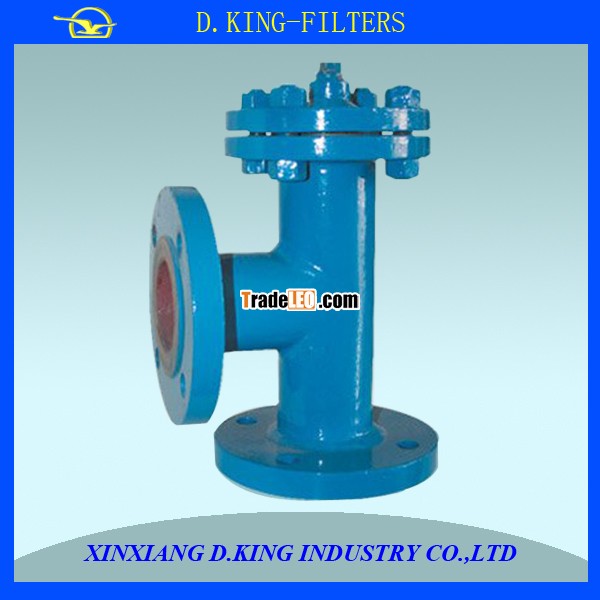

FTT-350×* T type SS filter
Effect：T type filter is belong to pipeline rude filter series . Normally installed in pressure reducing valve, pressure relief valve, the valve for water or other equipment inlet end . Used to clean up the impurity in the media, in order to protect the valve and the equipment normally use . T type filter is a kind of indispensable filtering device which is transport medium pipeline system
FTT-350×* T type SS filter
Model | Size（mm） | Valid filter area m2 | ||||
DN | In | L | H | H1 | ||
FTT-40×* | 40 | 1 1/2 | 256 | 149 | 306 | 0.0029 |
FTT-50×* | 50 | 2 | 256 | 149 | 306 | 0.0039 |
FTT-65×* | 65 | 2 1/2 | 292 | 170 | 348 | 0.0053 |
FTT-80×* | 80 | 3 | 312 | 182 | 384 | 0.0079 |
FTT-100×* | 100 | 4 | 362 | 210 | 473 | 0.0133 |
FTT-125×* | 125 | 5 | 420 | 235 | 529 | 0.0204 |
FTT-150×* | 150 | 6 | 460 | 260 | 581 | 0.0273 |
FTT-200×* | 200 | 8 | 560 | 320 | 694 | 0.0462 |
FTT-250×* | 250 | 10 | 670 | 380 | 821 | 0.0699 |
FTT-300×* | 300 | 12 | 780 | 430 | 949 | 0.1001 |
FTT-350×* | 350 | 16 | 830 | 450 | 1023 | 0.1205 |
FTT-400×* | 400 | 20 | 910 | 530 | 1166 | 0.1585 |
FTT-350×* T type SS filter
