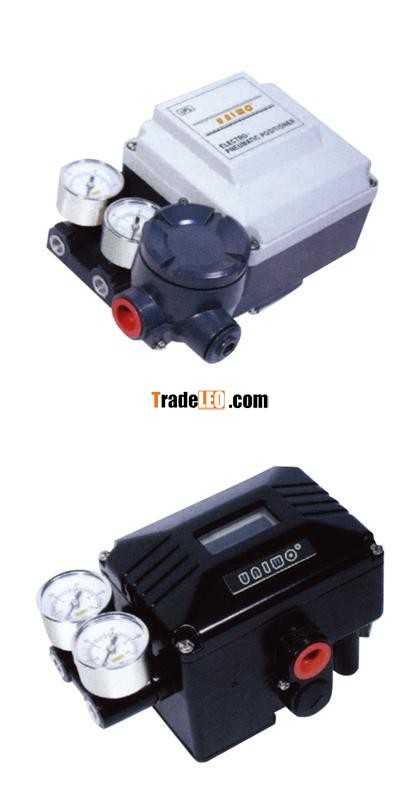

E/P Positioner REP-1000R(Rotary Type)

2016-10-31 04:34 Views:289

Price:Negotiable
Brand:RFS
Model:REP-1000R

Positioner

? Technical Parameter

Item. Type	Single Action	Double Action
Input Signal	4-20mA DC
Impedance	250±15 Ohm
Supply Pressure	1.4-7kgf/cm2(20-100psi)
Stroke	0~90°C
Air Connection	PT(NPT)1/4"
Gauge Connection	PT(NPT)1/8"
Conduit	PF1/2"(G1/2")
Explosion Proof	ExdmllB T5
	ExdmllC T5
	ExiallB T6
Protection	IP66
Ambient Temp	Operating: -20°C~70°C
	Explosion: -20°C~60°C
Linearity	±1%F.S.	±2%F.S.
Hysteresis	±1%F.S.
Sensitivity	±0.2%F.S.	±0.5%F.S.
Repeatability	±0.5%F.S.
Air Consumption	3LPM(Sup=1.4kgf/cm2, 20psi)
Flow Capacity	80LPM(Sup=1.4kgf/cm2, 20psi)
Material	Aluminum Diecasting
Weight	2.8kg(6.2lb)

The Elector-Pneumatic Postioner REP-1000R is used fou operation of pneumatic rotary valve actuators by means of electrical controller or control systems with an analog output signal of DC4 to 20mA or split ranges.
? There is no resonance at 5~200Hz.
? The change of RA/DA Acting is convenient,it is able to apply to single or double acting actuator.
? It is possible to prevent the hunting with orfice to the small size actuator.
? It is economical due to less air consumption.
? It is able to control the 1/2 split range with simple operation without relacement of parts.
