Brand:Sauer
Model:PV21/22/23
Send Inquiry

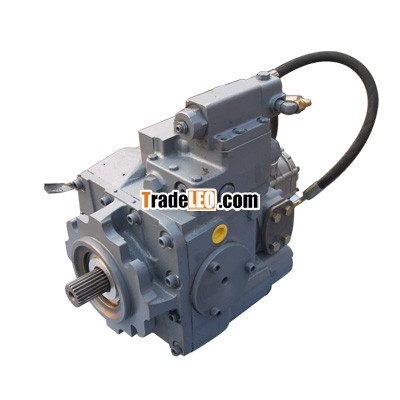

PV21 Sauer hydraulic Pump for Concrete Mixer Truck
Product Description:
(1).Mainly used on the Paver,road roller,continous soil mixing machine,concrete pump and
pharmaceutical machinery.
(2).Adopt international Hydraulic transmission device technology.
(3).Reliable working state, and easy operation.
(4).We produce the key components using imported material .
Main Features:
--Pass axis piston pump
--Hydrostatic Transmission
--Manual Servo and Hydraulic Variable control
Technical Parameters:
| Model | Max. Displacement(ml/r) | Torque at 10Mpa(N.m) | Out power(at 10Mpa 1500r/min)(kw) | Charge Pump Displacement(ml/r) | Max. Speed(r/min) |
| PV21 | 51.6 | 84.1 | 12.7 | 12.3 | 3000 |
| PV22 | 69.8 | 114.2 | 17.2 | 18.0 | 3000 |
| PV23 | 89.0 | 144.3 | 21.9 | 18.0 | 2800 |
Components Weight Chart:
| Model | Variable Pump | Variable Displacement Motor | Fixed Displacement Motor |
| PV21 | 53.52 | 58.51 | 34.47 |
| PV22 | 61.24 | 66.23 | 39.92 |
| PV23 | 78.47 | 83.46 | 47.17 |
