Model:1/2DR
Send Inquiry

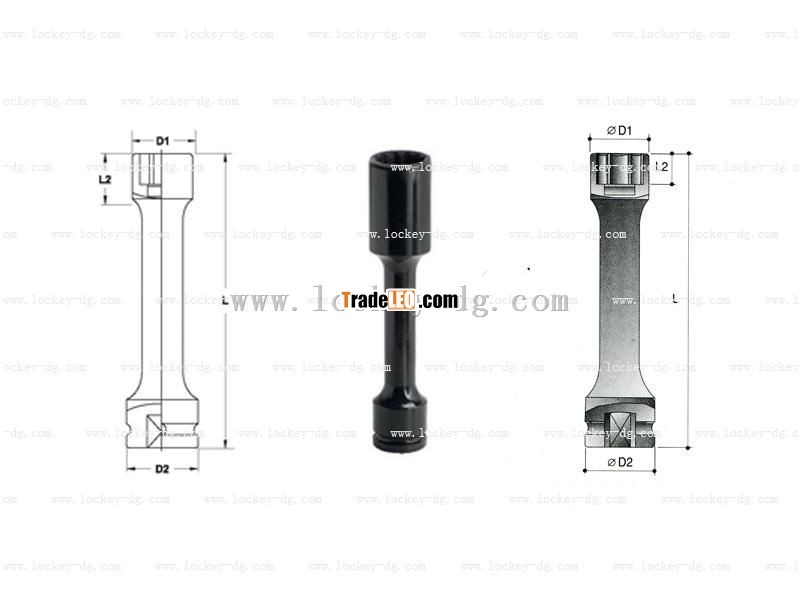

1>. Description: Extended Length Impact Socket, 12PT
2>. Material: 4140 / SCM440 / 42CrMo4
3>. Surface: Manganese Phosphate
4>. Size: As Below
5>. Packing: Bulk Packing, small box packing
Please do not hesitate to contact us If you are interesting our products, quotation will be sent shortly.
| 1/2DR. Extended Length Impact Socket, 12PT. SAE | |||||
| ITEM NO. | SIZE | D2(mm) | D1(mm) | L2(mm) | L(mm) |
| K35G4020 | 5/16" | 25 | 15 | 10 | (see below) |
| K35G4024 | 3/8" | 25 | 17.5 | 12 | (see below) |
| K35G4028 | 7/16" | 25 | 18.5 | 12 | (see below) |
| K35G4032 | 1/2" | 25 | 21 | 12 | (see below) |
| K35G4036 | 9/16" | 25 | 22.5 | 12 | (see below) |
| K35G4040 | 5/8" | 28 | 25 | 13 | (see below) |
| K35G4044 | 11/16" | 30 | 27.5 | 13 | (see below) |
| K35G4048 | 3/4" | 30 | 28.5 | 13 | (see below) |
| K35G4052 | 13/16" | 30 | 31 | 13 | (see below) |
| K35G4056 | 7/8" | 30 | 32 | 14 | (see below) |
| K35G4060 | 15/16" | 30 | 35 | 15 | (see below) |
| K35G4100 | 1" | 30 | 38 | 16 | (see below) |
| K35G4104 | 1-1/16" | 30 | 38.5 | 17 | (see below) |
| There are 5 optional L. 125, 150, 175, 200 and 250 | |||||
| 1/2DR. Extended Length Impact Socket, 12PT. Metric | |||||
| ITEM NO. | SIZE | D2(mm) | D1(mm) | L2(mm) | L(mm) |
| K30G4008 | 8 | 25 | 15 | 10 | (see below) |
| K30G4009 | 9 | 25 | 16 | 12 | (see below) |
| K30G4010 | 10 | 25 | 17.5 | 12 | (see below) |
| K30G4011 | 11 | 25 | 18.5 | 12 | (see below) |
| K30G4012 | 12 | 25 | 20 | 12 | (see below) |
| K30G4013 | 13 | 25 | 21 | 12 | (see below) |
| K30G4014 | 14 | 25 | 22.5 | 12 | (see below) |
| K30G4015 | 15 | 30 | 23.5 | 12 | (see below) |
| K30G4016 | 16 | 30 | 25 | 13 | (see below) |
| K30G4017 | 17 | 30 | 26 | 13 | (see below) |
| K30G4018 | 18 | 30 | 27.5 | 13 | (see below) |
| K30G4019 | 19 | 30 | 28.5 | 13 | (see below) |
| K30G4020 | 20 | 30 | 30 | 13 | (see below) |
| K30G4021 | 21 | 30 | 31 | 13 | (see below) |
| K30G4022 | 22 | 30 | 32 | 14 | (see below) |
| K30G4023 | 23 | 30 | 34 | 14 | (see below) |
| K30G4024 | 24 | 30 | 35 | 15 | (see below) |
| K30G4025 | 25 | 30 | 36 | 15 | (see below) |
| K30G4026 | 26 | 30 | 38 | 16 | (see below) |
| K30G4027 | 27 | 30 | 38.5 | 17 | (see below) |
| There are 5 optional L. 125, 150, 175, 200 and 250 |
