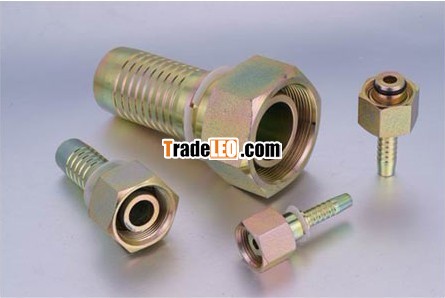

Model:20511-36-16
| E | HOSE BORE | DIMENSIONS | ||||||
| PART NO. | THREAD E | DN | DASH | TUBE O.D. | O RING | A | C | S2 |
| 20511-14-04 | M14*1.5 | 6 | 4 | 6 | O4.5*1.5 | 28.5 | 1.1 | 19 |
| 20511-16-04 | M16*1.5 | 6 | 4 | 8 | O6.5*1.5 | 29 | 1.5 | 22 |
| 20511-16-05 | M16*1.5 | 8 | 5 | 8 | O6.5*1.5 | 29 | 1.5 | 22 |
| 20511-18-04T | M18*1.5 | 6 | 4 | 10 | O8.0*1.5 | 26.5 | 2 | 22 |
| 20511-18-06 | M18*1.5 | 10 | 6 | 10 | O8.0*1.5 | 29 | 2 | 24 |
| 20511-20-06T | M20*1.5 | 10 | 6 | 12 | O10.0*1.5 | 28.5 | 2.5 | 24 |
| 20511-20-08 | M20*1.5 | 12 | 8 | 12 | O10.0*1.5 | 31.5 | 2.5 | 27 |
| 20511-22-06T | M22*1.5 | 10 | 6 | 14 | O11.0*2.0 | 28.5 | 2.5 | 27 |
| 20511-22-08 | M22*1.5 | 12 | 8 | 14 | O11.0*2.0 | 31.5 | 2.5 | 27 |
| 20511-24-06T | M24*1.5 | 10 | 6 | 16 | O13.0*2.0 | 28.5 | 2.5 | 30 |
| 2051-24-08T | M24*1.5 | 12 | 8 | 16 | O13.0*2.0 | 30 | 3 | 30 |
| 20511-30-10T | M30*2 | 16 | 10 | 20 | O16.3*2.4 | 36 | 3 | 36 |
| 20511-30-12 | M30*2 | 20 | 12 | 20 | O16.3*2.4 | 39 | 3 | 36 |
| 20511-36-12T | M36*2 | 20 | 12 | 25 | O20.3*2.4 | 36 | 3 | 41 |
| 20511-36-14T | M36*2 | 22 | 14 | 25 | O20.3*2.4 | 36 | 3 | 41 |
| 20511-42-12T | M42*2 | 20 | 12 | 30 | O25.3*2.4 | 40 | 5 | 50 |
| 20511-42-16T | M42*2 | 25 | 16 | 30 | O25.3*2.4 | 41 | 5 | 50 |
| 20511-52-20T | M52*2 | 32 | 20 | 38 | O33.3*2.4 | 44 | 6.5 | 60 |
| 20511-52-24T | M52*2 | 40 | 24 | 38 | O33.3*2.4 | 44 | 6.5 | 60 |
429122348 AT QQ
1:High Quality
2:prompt delivery
3:Reasonable and competitive price
4:Full range specifications
5:Custom-orientated Design:produce according to your blueprint or sample,offer custom-design
Material:Carbon Steel, Stainless Steel, Brass,alloy steel etc;
Surface:Cr+3 or Cr+6 Zinc Plating etc;
Different size available
Different types apply to various hydraulic hoses
Standard: Winner, Eaton standard,OEM offered
Perfect surface,smoothness without burs and impurities
Quality Control: ISO 9001-2008;
Application: Automobile, engineering Machinery, Lathe, Machinery, metallurgy, Petroleum, mine, construction, chemical industry, shipbuilding, spacecraft, military, Textile, Ocean,Recreation, Electronics and many other fields related with hydraulic and their delivery system of fluid and gas etc;
Note:Special dimension and other standard fitting can be customized, OEM/ODM is welcomed
