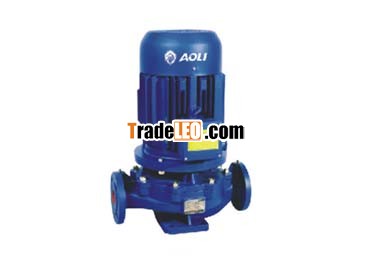

1.ALG Type Inline Centrifugal Pump is designed and manufactured to the standards of the latest Ministry of Machine Building JB/T53058-93 and ISO2858.

SG Type Pipeline Pump is a late-model solution to the problem of excessively lowpipeline pressure.

2.ALGB Type Detachable Centrifugal Pump uses Y, Y2 series standard motor. With no
need of taking off the motor, pump body and pipeline, making maintenance much easy
and quick.

3.PBG Type Canned Motor Pump uses canned motor technology in the field of fluid delivery.
Derived from it according to the difference in service temperature, medium and conditions,
includes

ALR hot water pump, ALS high temperature pump, ALH chemical pumpand ALY oil pump.

Features

1, Vertical structure, inlet and outlet given the same diameter and located on the same centerline, to be mounted in pipeline in the way as a valve, compact and smart appearance, little floor space required, low construction cost, and to be used outdoors if provided with a protective cover.
2, Impeller directly mounted on the extended shaft of motor to feature short axial dimensions and compact structure. Pump and motor bearings reasonably configured to effectively balance the radial and axial load in service, thus to ensure smooth operation with little vibration and low noise.
3, Use of mechanical seal or mechanical seal combination for shaft seal, sealing ring made of imported titanium alloy, medium-sized high temperature resistant mechanical seal, and wear resisting seal made of hard alloy to effectively lengthen the service life of mechanical seal.
4, Easy installation and maintenance, with no need to dismantle the pipeline system. And all the rotor parts may be taken out only by taking off the nuts on pump union base
