Brand:Gui Cheng
Model:KRM 143

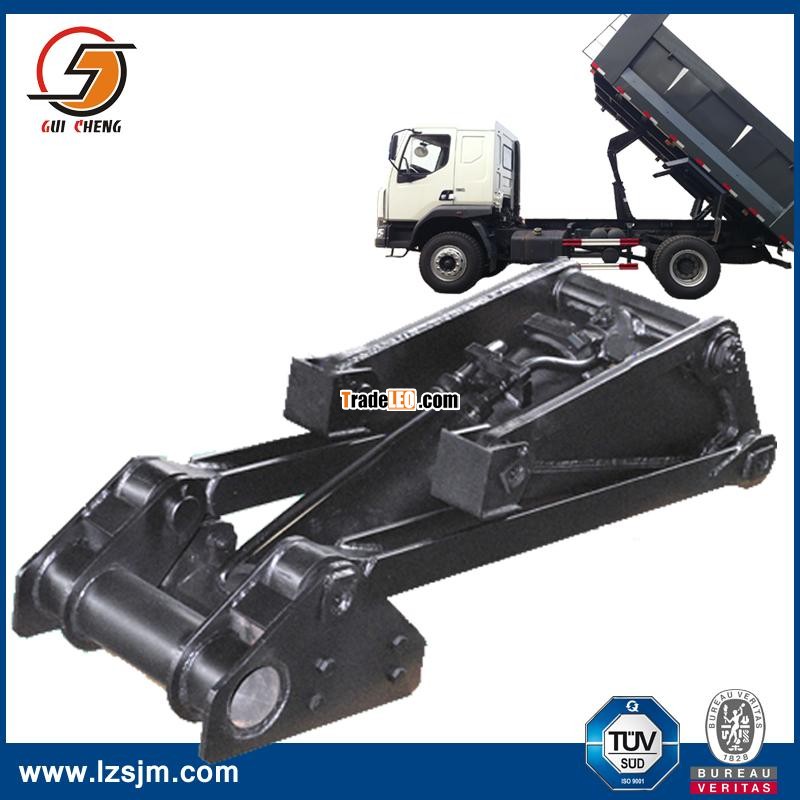

Main datas of Tipper trucks lifting system krm143
Cylinder Specification
| Model | Piston Rod DIA(mm) | Cylinder Inner DIA(mm) | Stroke(mm) | Weight | Retracted Cylinder Length (eye to eye) | Working pressure |
| KRM 143A cylinder | 60 | 140 | 530 | 72kg | 727mm | 6.4Mpa |
Hoist Mechanism Dimensions
| Length(mm) | Width(mm) | Height(mm) | Min.Closed Length(mm) | Weight(kg) |
| 1193 | 410 | 341 | 794 | 179 |
Hydraulic pump kp-55A
| Standard Revolution(rpm) | 800 |
| Discharge Volume(ml/rev.) | 55 |
| Max.Testing Pressure(Mpa) | 20.6 |
| Mass(kg) | 13 |
Hoist Mounting and Maximum Lifting Capacity
| Recommended Truck G.V.W.(kg) | Body Length L(mm) | Rear Overhang R(mm) | Distance between Load Center to Hinge D(mm) | Distance between trunnion to Hinge T(mm) | Rated Lifting Capacity(kg) | Designed Max.lifting Capacity (kg) | ||||||
| 6,000 to 9,000 | 3,400 | 400 | 1,300 | 1,100 | 4,000 to 5,000 | 60o | ||||||
| 8500 | ||||||||||||
Reference Datas for KRM Series Hydraulic Cylinder:
(We also produce custom made Hydraulic Cylinder according to your specific requirments)
| Model | Cylinder Inner Hole Diameter(mm) | Piston Rod Diameter(mm) | Stroke(mm) | Lifting Capacity(Ton) |
| KRM-92 | 160 | 45 | 405 | 4-5.5 |
| KRM-143A | 140 | 60 | 530 | 6-9 |
| KRM-160S | 160 | 70 | 604 | 8-11 |
| KRM-160C | 160 | 70 | 794 | 6-8 |
| KRM-183 | 180 | 80 | 832 | 21-29 |
| KRM-201 | 200 | 100 | 878 | 25-32 |
| KRM-220(48") | 220 | 100 | 1123 | 18-25 |
| KRM-220(68") | 220 | 100 | 1620 | 20-29 |
