Brand:HFXK
Model:FC-4TG-E160*4000-ZZ
Send Inquiry
Shandong Hongfaxingkai Industrial co.,ltd has 15 years experience produce the hydrualic
cylinder and balers,our products can be widely used in variours types of Dump Truck.
Our hydraulic cylinder main advantage:
1.It is made of high quality 27SIMN seamless steel tube with our advanced technology and
equipment.
2.100% 21MPA high pressure testing.
3.Cylinder's thickness is up to 16mm,with high bending strength.
4.The famous brand grease seal,to have the good sealing effenct and with long using life.
5.The production technology is Gas Welding,to have the high strength.
6.We could custom cylinders for every dump truck.
| Shandong Hongfaxingkai Industrial co.,ltd | |||

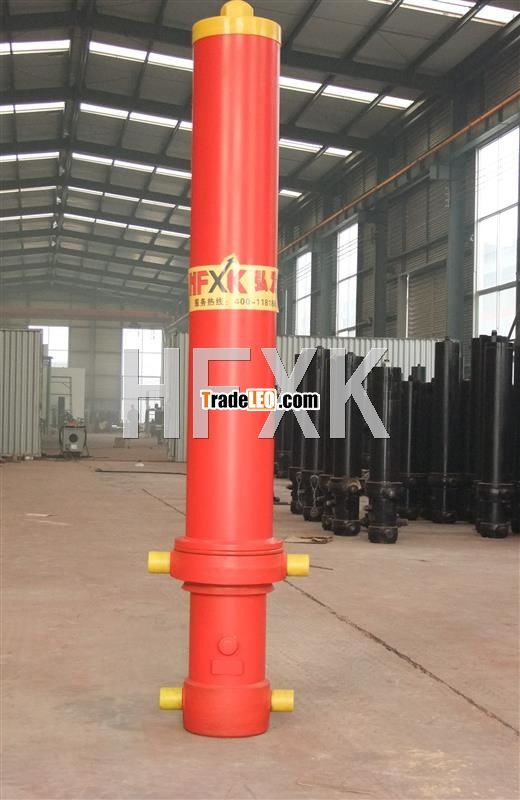

| Product Name | Multi-stage single acting telescopic cylinders | ||
| Cylinder TYPE | 4TG-E160*4000-ZZ | ||
| Cylinder Diameter | 160mm | ||
| Working Pressure | 16-20MPa | ||
| Cylinder Weight | 300KG | ||
| Cylinder Stage | 4 | ||
| Max Stroke | 4000mm | ||
| Cylinder Volume | 58L | ||
| Cylinder Thrust | 322KN | ||
| Body Length | 5.2-5.6m | ||
| Material | 27SIMN of cylinder tube | ||
| Application | Dump truck,Tipper,Garbage truck, | ||
| Certification | ISO9001-2008 and TS16949 | ||
| Package | Industrial packing | ||
| Payment Terms | TT,LC,West Union | ||
| Delivery Time | 10-20 days | ||
| Warranty | One-year Warranty | ||
| HS Code | 8412210000 | ||
