Brand:chinacoal
Model:Vertical Non Clogging Slurry Pump
SP Slurry Pump Vertical Effluent Handling Slurry Pump Vertical Centrifugal Handling Slurry Pump
Chinacoal07 SP Vertical Effluent Handling Slurry Pump, Handling Slurry Pump,
Slurry Pump
Features :

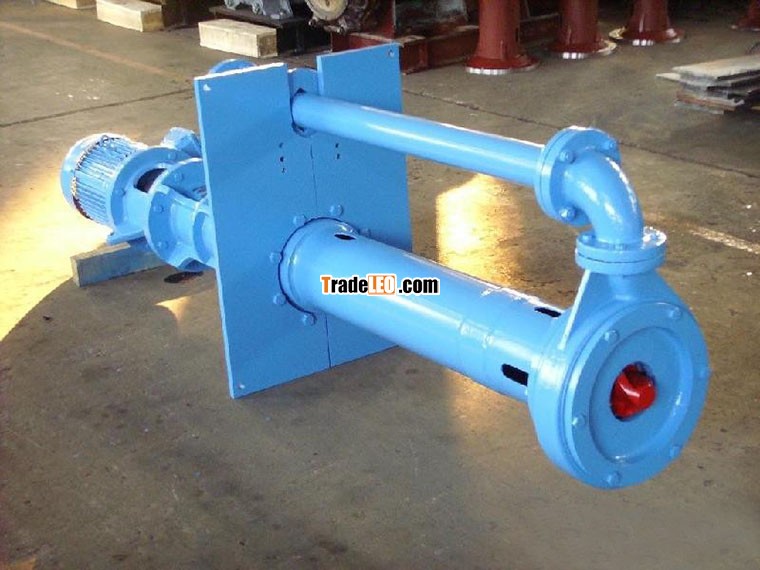

1.SP (R) type submerged pumps are vertical centrifugal slurry pump, generally into the pool or pit to
work,used to transport abrasive, coarse particle, high concentration slurry.
2. Don't need any shaft seal and shaft seal water, in the inhaled volume insufficient conditions they
can also work normally.
3.SP (R) type submerged pumps' pump body is made of wear-resisting metal. Impeller is made of
wear-resistant metal or rubber, polyurethane SP (R) type submerged pumps parts into the liquid with
rubber lining,they are all applicable to transport corrosive slurry.
Models and
introductions
| Model | Outlet diameter mm | Speed | The main technical parameters | Power | Impeller | ||
| Flow | Lift | Efficiency | |||||
| 40PV-SP(R) | 40 | 1000-2200 | 17-43.2 | 4-28.5 | 40 | 15 | 188 |
| 65QV-SP(R) | 65 | 700-1500 | 17-114 | 5-31.5 | 60 | 30 | 280 |
| 100RV-SP(R) | 100 | 500-1200 | 54-289 | 5-36 | 62 | 75 | 370 |
| 150SV-SP | 150 | 500-1000 | 108-479 | 8.5-40 | 52 | 110 | 450 |
| 200SV-SP | 200 | 400-850 | 189-891 | 6.5-37 | 64 | 110 | 520 |
| 250SV-SP | 250 | 400-750 | 261-1089 | 7-33.5 | 60 | 200 | 575 |
| 300TV-SP | 300 | 350-700 | 288-1267 | 6-33 | 50 | 200 | 610 |
