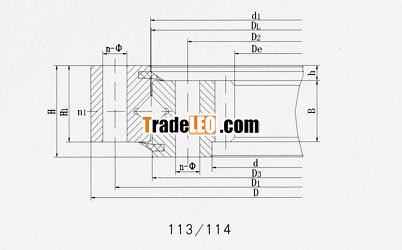

In 1, the series is supported primarily by internal and external ring, compact structure, light weight, small assembly space,the installation precision

Requirements for high. Roller for 1: 1 cross arrangement, can bear axial force, radial force and overturning moment

Joint action.

In 2, N1 for lubricating oil hole number, uniform, an M10 x 1JB / T7940.1.

In 3, the table below gear circumferential force for maximum rated circumferential circumferential force, force 1 / 2.

In 4, the table below models for our standard models, non-standard models can be designed and manufactured according to customer requirements.

In 5, the general condition, suggested the use of the same model 013014 series instead of the series.
