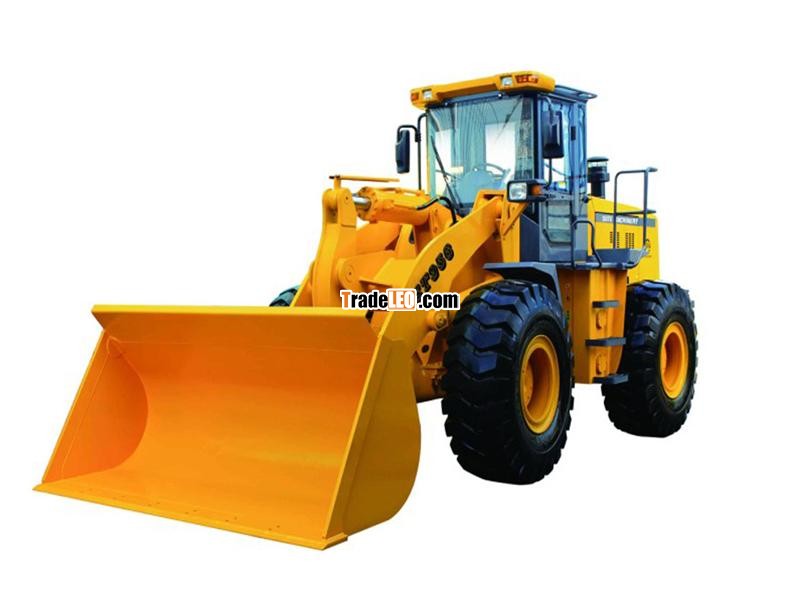

Model:wheel loader ,consruction,machinery
Send Inquiry
Main characteristic
- The single rocker and long wheelbase design,as well as the using of solid implement and frame ,ensure stability,enlarge the breakout force and short cycle time.the product is of excellent performance and meets the need of loading and unloading heavy material in mines .articulated frame ,turn radius is small
- Quenched integral cutting edge bucket,more strength,better wearing resistance and long life.
- Double-turbine hydraulic torque converter,planetary power shift transmission ,easy control and high reliability
- Dual-pump confluence hydraulic system,excellent power performance,save energy and oil consumption.
- Fully hydraulic flow amplified steering system,easy ansd low-effort control reliability.
- Pilot controling system as optional.
- All-wheel,dual-line,disc-caliper-type brakes,real mounted air reservoirs,and emergency brake,ensure safety and reliability.
- Optimized and efficient working devices with the antomatic leveling and limit lifting function.
Specitions:
| Overall dimension | ||
| Overall length (Bucket on the ground) | mm | 8120 |
| Overall width | mm | 2880 |
| Bucket width | mm | 3020 |
| Height(To the top of cabin) | mm | 3460 |
| Wheel base | mm | 2810 |
| Tread | mm | 2300 |
| Min. ground clearance | mm | 450 |
| Main technical specification | ||
| Rated load | kg | 5000 |
| Operating weight | kg | ≤17100 |
| Rated bucket capacity | m3 | 3.0 |
| Max. breakout force | KN | 167 |
| Max. dumping clearance | mm | 3150±50 |
| Dump reach | mm | 1220 |
| Max. climbing gradient | ° | 28 |
| Turning angle | ° | 35±1 |
| Dump angle at any position | ° | 45 |
| Turning radius | mm | 7240 |
| Lifting time of bucket | s | ≤6.0 |
| Total hydraulic cycling time | s | ≤11.4 |
| Travel speed | ||
| 1st gear forward | km/h | 11.5 |
| 2nd gear forward | km/h | 38 |
| 1st gear reverse | km/h | 16 |
| Diesel Engine | ||
| Model | WeiChai WD10G220E11 | |
| Type | In-line, water cool,four-stroke direct injection | |
| Rated power | KW | 162 |
| Inter-bore of cylinder/stroke | mm | 6- 126×130 |
| Rated speed | rpm | 2200 |
| Max. torque | N.M | 843@1500r/min |
| Min. specific fuel consumption | g/kw.h | 215 |
| Torque converter | ||
| Model | YJSW315-6 | |
| Type | Singel stage,double turbine,colligation | |
| Torque coefficient | KO=4.13 | |
| Cooling method | Oil cooled pressure circulation | |
| Oil inlet pressure | MPa | 0.4-0.5 |
| Gear box | ||
| Model | XM50 | |
| Type | Power shift, Planetary | |
| Gear number | Forward 2, Reverse 1 | |
| Gear ratio | ||
| Forward Ⅰ | 2.155 | |
| Forward Ⅱ | 0.578 | |
| Reverse Ⅰ | 1.577 | |
| Transmission pump | ||
| Roate speed | rpm | 2200 |
| Flux | L/min | 140 |
| Working pressure | MPa | 1.08~1.47 |
| Axle and Tire | ||
| Type of main reducer | Helix gear single stage reducer | |
| Reduction ratio | 5.2857:1 | |
| Type of final reducer | Column straight gear Planet speed reducer | |
| Gear ratio for final reducer | 4.4:1 | |
| Tyre | 23.5-25-16PPR | |
| Working Hydraulic System | ||
| Model of oil pump | CBGq2100 | |
| System pressure | MPa | 16 |
| Distribution valve type | Double valve,Mechanical operation | |
| Dimension of lifting cylinder | mm | 2-φ180×722 |
| Dimension of tilt cylinder | mm | 1-Φ200×563 |
| Steering system | ||
| Type | Hinge joint frame, Priority type, Flux expanding turning system | |
| Model of steering pump | CBGq2080 | |
| System pressure | MPa | 16 |
| Dimension of steering cylinder | mm | 2-Φ100×315 |
| Brake system | ||
| Type of driving brake | Double pipe,gas drive oil, four wheel disc type braking | |
| Type of parking brake | Hand braking | |
| Electrical system | ||
| System voltage | 24V | |
| Battery model | N200 12V200AH(2PCS) | |
Optional equipments
- Shanghai C6121ZG diesel engine 162kw/2200rpm,Cummins 6CTA8.3-C215 diesel engine 160kw/2200rpm;
- ZF WG180 powershift transmission,4 forward and 3 reverse gears
- meritor axle,liuzhou ZF axle（wet multi disc brakes）
- Loose material bucket,rock bucket
- Pilot controller;
- Various implements logloader,side -dump loader,high -dump loader
- Electronic weighing
- Air conditioning system-cool wind type,warm wind type
- Grammer seat
