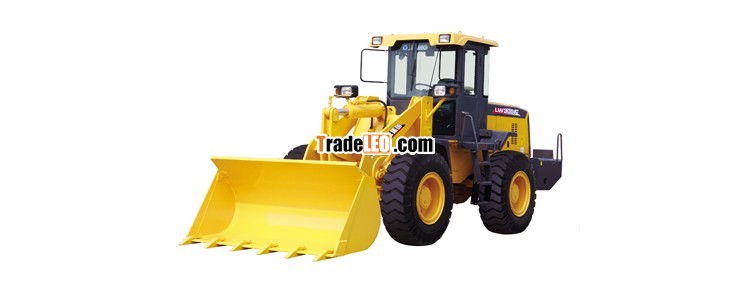

Model:LW300F
Send Inquiry
| Rated load | 3.0 | t | ||
| Bucket capacity | 1.8 | m3 | ||
| Dumping height | 2892 | mm | ||
| Dumping distance | 1104 | mm | ||
| Max.drawing force | ≥120 | kN | ||
| Max. traction | ≥90 | kN | ||
| Dimension (Length × Width × Height ) | 6905×2470×3028 | mm | ||
| Operating weight | 10.0 | t | ||
| Boom lifting time | 5.65 | s | ||
| Total time of three devices | 10.3 | s | ||
| Wheelbase | 2600 | mm | ||
| Min. turning radius (bucket outer) | 5925 | mm | ||
| Rated power | 92 | km/h | ||
| Travel speed I Gear (Forward/Backward) | 0～10/14 | km/h | ||
| II Gear (Forward/Backward) | 0～16/25 | km/h | ||
| III Gear (Forward) | 0～21 | km/h | ||
| IV Gear (Forward) | 0～35 | km/h | ||
