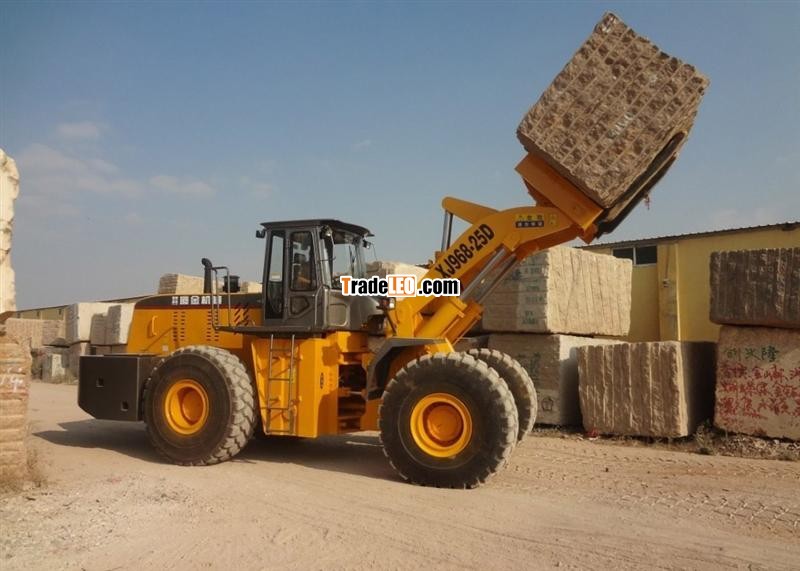

Model:XJ968-25D
No. | “XIAJIN MACHINERY” XJ968-25D |
| When full-load (≤25tons), the Max. lifting height reaches3.75m |
| “WEICHAI” 175kw/h |
| Operate weight reaches 30tons, it is 3tons heavier than other brands. |
| Bigger external diameter of oil cylinder piston of lifting arm and tilt cylinders, to ensure system pressure of whole machine; Steering system is with amplified flow and bigger steering cylinders to increase the guarantee when steering under heavy loading. Ensure system pressure of whole machine, to ensure the lifting height. |
| Short wheelbase design, small turning radius, effectively save work space. |
| Bigger and enhanced drive axles special for 25 tons forklift loaders. The bearing, gears, hub and supporting axle are all bigger. More reliable, and low failure rate, supporting weight increased. |
| Luxurious and special driver cab made by mould, it is high in rigidity and strength; The cab is with luxurious interior, integral dashboard to ensure simple, beautiful and practical; Big corner windscreen ensures clear vision. Beautiful, elegant, luxurious and practical. |
| Luxurious and harmonious proportion structure appearance looks beautiful and elegant. Beautiful, elegant, luxurious and practical. |
| Fork slope Angle reaches 18 º, effectively solve the problem of unloading slope angle and taking out the fork when the height of the stacking goods reaches3200 mmand height of loading reaches1680 mm.The thinnest place of the fork reaches50 mm, wear-resisting, to prolong the service life. |
10. Humanized and modern equipments | With special air-conditioner, single-handle pilot control system, electronic control gearshift to ensure easy operation and more modern; Independent transmission oil and Hyd. Oil radiator improve the system stability. Comfortable and easy operation, improves the system stability. |
11. Structure | Besides the special design of structure, it is fully thickening, the thickness of lift-arm reaches60mm, the thickness of hinged panels reaches60mm. Bigger hinged pin and hinged bearing The self-weight reaches 30 tons. |
12. Counter weight | Two corner radius of counter weight is big. Steel plate thickness of counterweight reaches8mm. |
13. Tire | Front wheels are with “ADVANCE” high-load three stars 26.5 steel wire tires (Tire load more than 60tons), Rear-wheels are with “ADVANCE” 26.5 strengthening tires. Ensure high bearing capacity, durable. Prolong the service life. |
14. Humanized equipments | Humanized equipments: special air-conditioner, oil gauge, drinking cup and windscreen wiper water spray setting. More humanized |
15. High strength high-pressure oil pipe | Oil-pipes for high-pressure position adopts high-value and durable PARKER pipe. Reliable and durable. |
16. Summary | Small turning radius, the strongest loading capacity, the highest lifting height, the best devices. |
The top performance
Description | Specifications | Unit | |||
Rated power | 175 | kw/h | |||
Overall dimension（L×W×H） | 9000×2990×3650 | mm | |||
Max. lifting height | Forks at level | 3450 3750 | Mm mm | ||
Take back Fork | |||||
Operating weight | 30000 | kg | |||
Max. Limited Load | 25000 | kg | |||
Bucket capacity | 2.7 | m3 | |||
Dimensions of fork | （L×W×H） | 1400×250×110 | mm | ||
Distance of fork | ≤1350 | mm | |||
Rated loading capacity | 25000 | kg | |||
Turning angle | ±35° |
| |||
Turning radius | 7735 | mm | |||
Wheel base | 3700 | mm | |||
Tread | 2300 | mm | |||
Min. Ground clearance | 430 | mm | |||
Unloading angle | 18° |
| |||
Haul location height（Ground clearance of material） | 300 | mm | |||
Fuel tank capacity | 380 | L | |||
Hydraulic fuel tank capacity | 380 | L | |||
Specification of tyre | Front wheel | 26.5 steel wire tire |
| ||
Rear wheel
| 26.5 steel wire tire | ||||
