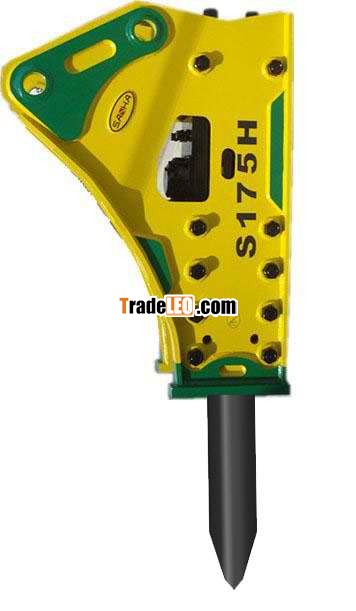

Model:S175H
Send Inquiry
| Model/Description | Unit | S53H | S68H | S75H | S85H | S100H | S135H | S140H | S150H | S155H | S165H | S175H | S180H |
| Tool Diameter | mm | 53 | 68 | 75 | 85 | 100 | 135 | 140 | 150 | 155 | 165 | 175 | 180 |
| inch | 2.1 | 2.7 | 3.0 | 3.4 | 4.0 | 5.4 | 5.6 | 6.0 | 6.2 | 6.6 | 7.0 | 7.2 | |
| Weight of Main Body | kg | 86 | 164 | 203 | 282 | 472 | 772 | 837 | 967 | 1157 | 1246 | 1536 | 1685 |
| lbs | 189 | 362 | 448 | 622 | 1041 | 1702 | 1845 | 2132 | 2551 | 2747 | 3380 | 3715 | |
| Operating weight (Connector & Chisel) | kg | 159 | 308 | 392 | 597 | 902 | 1723 | 1851 | 2265 | 2760 | 2972 | 3809 | 3910 |
| lbs | 350 | 678 | 863 | 1317 | 1988 | 3799 | 4081 | 4993 | 6086 | 6551 | 8379.8 | 8620 | |
| Impact Rate | bpm | 600~1100 | 500~950 | 450~800 | 400~800 | 350~700 | 350~500 | 350~500 | 300~450 | 300~450 | 250~400 | 200~350 | 250~350 |
| Operating Pressure | psi | 1280~1700 | 1350~1900 | 1710~2030 | 1850~2140 | 2130~2420 | 2320~2610 | 2280~2560 | 2320~2610 | 2280~2560 | 2280~2560 | 2320~2610 | 2320~2610 |
| bar | 90~120 | 100~130 | 120~140 | 130~150 | 150~170 | 160~190 | 160~180 | 160~190 | 160~180 | 160~180 | 160~180 | 160~190 | |
| Required Oil Flow | l/min | 26~41 | 30~45 | 40~80 | 45~85 | 80~110 | 125~150 | 125~150 | 160~180 | 170~230 | 180~240 | 210~290 | 200~260 |
| gal/min | 7~11 | 8~12 | 10~20 | 12~22 | 21~29 | 33~40 | 33~40 | 43~51 | 43~57 | 45~60 | 50~65 | 50~65 | |
| Hose Diameter | inch | 1/2 | 1/2 | 3/4 | 3/4 | 3/4 | 1 | 1 | 1 | 1 1/4 | 1 1/4 | 1 1/4 | 1 1/4 |
| Applicable Carrier Weight | ton | 3.0~4.5 | 4.0~7.0 | 5.0~9.0 | 6.0~11.0 | 10.0~15.0 | 16.0~22.0 | 16.0~25.0 | 25.0~30.0 | 29.0~33.0 | 30.0~40.0 | 40.0~55.0 | 40.0~55.0 |
If any questions, please feel free to contact us. We will offer our professional service to you.
