Model:110BYGH150-001
This item includes:

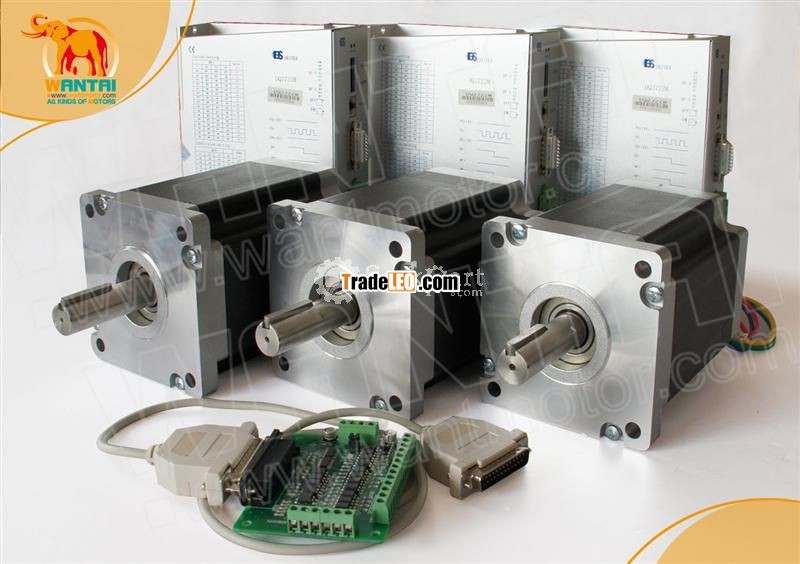

3 PCS Nema 42 Stepper Motor with Single shaft 3256oz-in Holding torque,
3 PCS Stepper Driver DQ2272 With 8.0A Peak current,7.0A rated current, 110-220VAC,300 Microstep,
1 PC DB25 Breakout Board & 1 Cable
http://www.wantmotor.com
1, Stepper Motor
Technical Specifications
Part No.: 110BYGH150-001
frame Size: NEMA42
Step Angle: 1.8 degree
Voltage: 5.44VDC
Current: 6.8 A/phase
Resistance: 0.8Ohm/phase
Inductance: 15mH/phase
Holding torque: 230 Kg-cm 3256oz-in
Rotor inertia: 1090 g-cm2
Number of wire leads: 4
Weight: 8.4kg
Length: 150mm
Please tell us if you need Double shaft or single shaft, we can manufacture both for you. If you need Double shaft, please tell us your requirements for length of front and rear shaft, as well as the diameter. So that we can offer you the quite good products, thanks!
if you need the drawing of the motor, please email me: sales@wantmotor.com
2, Stepper Motor Driver DQ2722M,
110-220VAC, 7.0A, 300Microstep
The DQ2722M is full digital 2 phase stepper driver based on DSP control. The drive voltage of which is from 110V to 220VAC. It is designed for use with the 2 phase hybrid stepper motor of all kinds with 86mm to 130mm outside diameter, regulated phase current 1.2A to 7.0A. The circuit that it adopts is similar to the circuit of servo control which enables the motor run smoothly without noise and vibration. The highest micro step is 60000ppr. It is widely used in middle and big size numerical control devices such as curving machine, CNC machine, computer embroider machine, packing machine and etc.
FEATURES
l High performance, low price
l 16 channels constant angle, constant torque micro steps, highest micro step: 60000ppr
l Highest response frequency: 200Kpps
l Current of winding will be reduced by approximately 50% when no step pulse command is received for 0.1 second
l Opto-isolated signal I/O
l Drive current is adjustable in 16 channels from 1.2A/phase to 7.0A/phase
l Single power supply from 110V to 220VAC
l Phase terminal memory function (motor phase terminal is memorized after input pulse train stopping 5s and it is recovered when stepper driver power on or signal MF changes from low level to high level)
Our products are mainly used in robotization, Spinning Automatization, Printing, Packing, Medica Machine, Make-up Equipment, Communication, Household Appliance, Water Pump, Milling Machine, Engraver Machine, CNC Routers.. etc automatic equipment of various trades We Ship Worldwide!
We product all kinds of motors & driver. And we can manufacture products according to our customer's design.
