Model:CD1

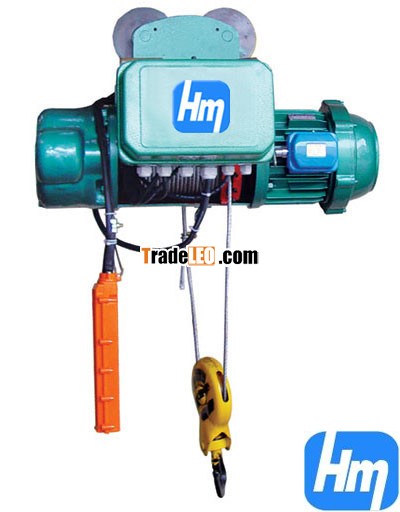

CD1 wire-rope electric hoist is a kind of small-lifting equipment, it can be mounted on single beam overhead crane ,gantry cranes, jib type CD, electric hoist as only one normal speed which can satisfy normal application, It is widely used in factories, mines, harbors, warehouses, cargo storage area and shops, essentially in raising working efficiency and improving working conditions.
Model | 0.25TON | 0.5TON | 1TON | 2TON | 3TON | 5TON | 10TON |
Capacity ton | 0.25 | 0.5 | 1 | 2 | 3 | 5 | 10 |
Standard lift m | 3-9 | 6-12 | 6-30 | 6-30 | 6-30 | 6-30 | 6-30 |
Lifting Height m/min | 8/0.8 | 8/0.8 | 8/0.8 | 8/0.8 | 8/0.8 | 8/0.8 | 7/0.7 |
Running Speed m/min | 20/30 | ||||||
Wire Rope type | 6*19-3.6 | 6*37-4.8-180 | 6*37-7.4-180 | 6*37-11-155 | 6*37-13-170 | 6*37-15-200 | 6*37-15-200 |
I beam track type | 16-22b | 16-28b | 16-28b | 20a-32c | 20a-32c | 25a-63c | 28a-63c |
Loop track minimum Radius m | 0.8 | 1.5 | 1.5-4 | 2-4 | 2-4 | 2.5-5 | 3.5-9 |
Voltage V | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
Frequency HZ | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
Phase | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
