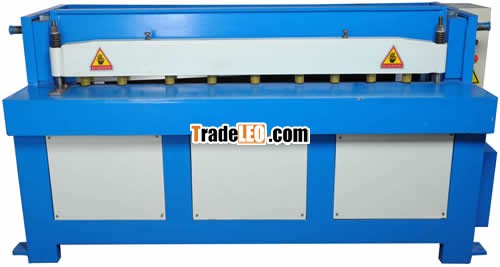

The machine is of all-steel welded construction. Simple construction with good appearance. It is easy to operate, with low energy consumption. It is widely used for medium and thick steel sheet forming in the light machine industry , hardware manufacture. The blade is made from Cr9Si. CNC backgauge is available to give higher precision
Type | Thickness (mm) | Width (mm) | Cutting Augle | Traveltimes | Area (mm) | Main moter (kw) | Weight (kg) | Modle Size mm(LxWxH) |
SBJB2x1300 | 2 | 1300 | 2°25′ | 20 | 350 | 3 | 670 | 2015x1500x1300 |
SBJB3x1300 | 3 | 1300 | 2°25′ | 20 | 350 | 3 | 1270 | 2115x1500x1300 |
SBJB3x1500 | 4 | 1500 | 2°25′ | 20 | 350 | 3 | 1800 | 2515x1500x1300 |
SBJB4x2000 | 4 | 2000 | 1°30′ | 20 | 500 | 5.5 | 3300 | 3200x1300x1610 |
SBJB4x2500 | 4 | 2500 | 1°30′ | 20 | 500 | 5.5 | 3800 | 3580x1300x1610 |
