Brand:xinmao
Model:XM-GT-8mm

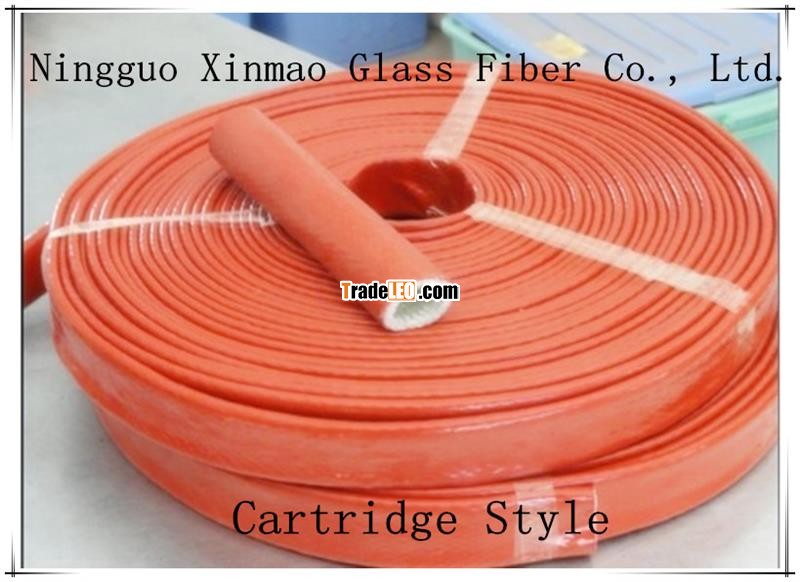

Xinmao company produces high temperatureinsulation insulated wire and cable sheathing is made of high-puritypreparation of E-glass fibers into a tube, and then processed through the tubewall coated silicone vulcanization. After curing long-term use and to maintainits softness elastic properties within -65 ° C-260 ° C temperature range.
Hightemperature insulation insulated wire and cable sheathing is made of high loftfiberglass casing, and covered with thick iron oxide red silicone, can stop themolten iron splash, and are not damaged by heat and flame , high temperatureinsulation insulated wire and cable sheathing tube has advanced threecombinations: wear - retardant layer, heat - resisting fire layer,fire-resistant layer, even if a story is burn, third layer can also beeffective protection for the next service to gain time, high temperatureinsulation insulated wire and cable sheathing products bright color, and has agreat extension coefficient, these properties make it suitable for harshenvironment protection software pipes, cables and piping.
Thescope of high temperature insulation insulated wire and cable sheathing tube:high-temperature region of steel, metallurgy, shipbuilding, automotive,aerospace, aviation, military and other industries such as chemical, heatingzone cables, fluid lines, rolling mill cables, tubing, saws Cut around the edgecables, generators, electrical voltage equipment, large buildings, hydraulicsystems, automotive wire harnesses and exhaust pipes.
Product descriptions
High temperature insulation insulated wireand cable sheathing performance test:
High temperature bend test
Surface without cracking or film aging skinwithout stripping phenomenon after heating at a constant temperature of260 ℃oven for 48 hours
Low temperature foldingtest
After heating at a constant temperature of-70 ℃oven for 1 hour surface without cracking or peeling produce no surface coating.
Film coated test
After continuous use by a thermostatic ovenoff or dissolve the test no surface phenomenon.
Flammability Test
No spontaneous combustion retardant andself-extinguishing (according to UL "VW-1" and CSA "HFS"test)
Temperature Test
(2000hr)260 ℃no abnormal heating tests are normal
(30sec)1200 ℃heating test glass fiber intact
Flame retardancy test
Burning rate of not less than 45s /25mm--- SRG-1-7kv SRG-1-4kv, (motorinsulation grade can reach higher than the H C grade)
Normal minimum dielectric breakdown voltage7.0 kv / min 4.0 kv / min
Normal averagedielectric breakdown voltage 10.0 kv / min 7.0 kv / min
Property
Silicone rubber,E-glass fibers are high temperature areas within the finest ingredients, twodifferent kinds of materials through synthetic coating process, determine thatit has a rich and excellent product performance and other high-temperatureprotective material currently difficult to replace Features: high temperatureperformance, thermal insulation properties, fire retardant properties,electrical insulation properties, chemical stability, resistance to weatheringperformance, cold, water, oil, corrosion resistance, ozone resistance, voltage,resistance, arc resistance, corona performance, etc., especially safety andenvironmental performance, asbestos and other hazardous products are the bestalternative products, it is currently the most widely used at home and abroadof high temperature resistant protective material.
Product Size
The inner diameter (mm): Φ6mm- Φ130mmabove specifications can be customized
Color: rust red, blue, black, gray, yellow,orange, etc., common in red.
Company Profile
Ningguo Xinmao company has alwaysbeen adhering to the "quality first, credit first" purpose, afteryears of hard work and continuous development, and gradually form a"high-temperature casing" for leading products, glass fiber products,self-extinguishing tube counseling business.
The company producedhigh-temperature casing workmanship, high temperature casing are widely used:high temperature region of steel, automobile, shipbuilding, aerospace, metallurgy,machinery, petrochemical, chemical, military, defense, scientific research andother industries, the heating area cable , fluid lines, rolling mill cable,tubing, cutting the sides cable, generators, electrical voltage equipment,large buildings, hydraulic systems, automotive wire harnesses and exhaustpipes, and so on industry.
Xinmao brand'sproduct quality and credibility of enterprises and foreign customers by thepraise. From business start-up so far exported toSoutheast Asia, as well as throughout the country. A warm welcome to visitthe new and old customers visit guidance.
