Brand:JINYU
Model:JY-A02

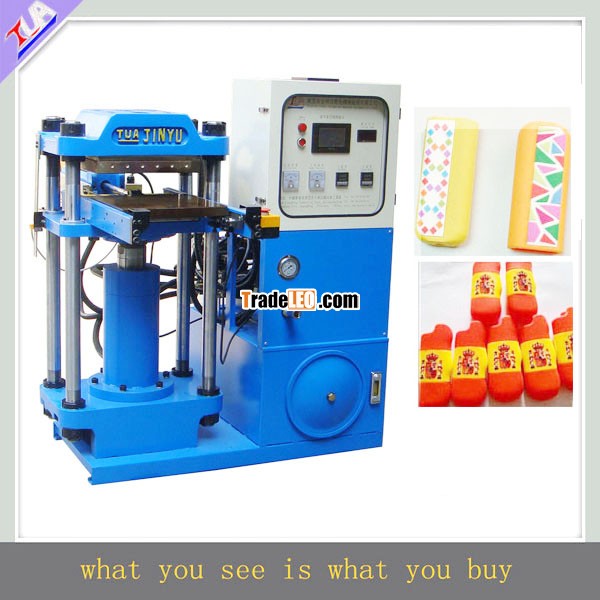

professional and good quality silicone lighter cover shaping machine
More detail of silicone lighter cover shaping machine:
1,working table:used deep hold processing,HRC50-55 harness, long time wear-resisting, durable and hot easy to be out of shape and high plane precision.
2,Pillar: used with chromium, it’s very durable without distortion.
3,Push button: can choose to automatically or manually to complete the task.
4,Solenoid valve: control the circuit and ensure the machine can work normally.
check what we can do:
Brief Description of silicone lighter cover shaping machine:
silicone lighter cover shaping machine is a device through a dedicated hydraulic oil as the working medium, the hydraulic oil in the tank to complete a certain mechanical action as the productivity of a mechanical cycle cylinder / piston cycle acting through the one-way valve.
Technical Parameters about silicone lighter cover shaping machine:
| Type | 30T | 50T | 63T |
| Worktable (mm) | 350*350 | 350*400 | 400*400 |
| Power specification | 3 phase 4 wire, 380V | 3 phase 4 wire, 380V | 3 phase 4 wire , 380v |
| Total power (kw) | 14.5 | 18.3 | 18.3 |
| Electrical power (kw) | 3.7 | 7.5 | 7.5 |
| Heating power (kw) | 10.8 | 10.8 | 10.8 |
| Piston diameter (mm) | Φ150 | Φ180 | Φ200 |
| Weight (kw) | 1000 | 1500 | 2000 |
| Size (mm) | 1200*1600*1300 | 1300*1650*1400 | 1400* 1650*1550 |
Features of silicone lighter cover shaping machine:
1.Adopt the world advanced SOLIDEWORK3Dsoftware and finite element analysis of mechanical design,the optimum design is integrally molded high rigidity,precise structure,long service life.
2.Heating plate adopt deep hole processing,and after carburizing,after grinding nitriding,using the principle of heat,get the high precision,and the optimal design with average temperature,HRC50-55 hardness,long time wear-resisting,Not easy to be out of shape and it has high plane precision.
3.Using the technology of planar pressure correction, the maximum pressure(200KG) nut leveling device,the highest plane precision can reach 0.05 MM.
4.Unique oil circuit design,the oil circuit non impact and low noise in operation,increase the effectiveness,reduce the energy consumption.
5.Using circulation radiation cooling device,to ensure good heat exchange,low oil temperature,long life hydraulic parts,stability forming.
6.Intelligent PID control output,the difference of set temperature and actual temperature controlled in+-1 degree.It is economic and energy-saving.
7.importing the latest digital prototype testing technology,higher thermal performance,better stability than the traditional design.
8.Adopt imported famous brand digital temperature control,the precision of temperature controlled in +-2 degrees the program has a week preheating function.
g at the same time;
6. operate the machine via PLC panel, use 24V circuit accessories, safe and durable.
