Brand:Grewin
Model:Ee16 Ee13 Ee28 High Voltage High Frequency Transformer
Send Inquiry
Name:

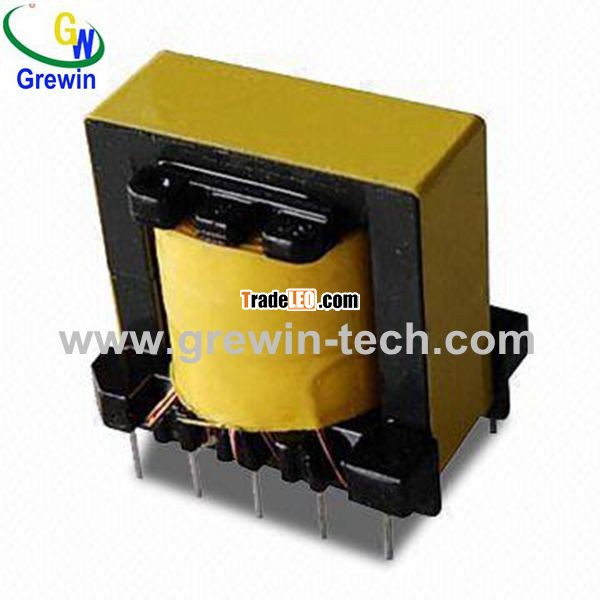

ee16 ee13 ee28 high voltage high frequency transformer ferrite core for Switching power supply
EE type Transformer Parameters
| Brand Name; | GREWIN Transformer | Core structure; | lamination | Coil number; | Autotransformer |
| Place of Origin; | China | Coil Material; | ferrite | Coil structure; | toroidal |
| Usage; | High Frequency | Model : | EE | Phase; | single |
| Application; | High-frequency switching power supply and High-frequency inverter power transformer. PBX | ||||
| Deliver time; | Within 10 working days | Package; | Customized standard cartons | ||
| ATTENTION; | YOU CAN CUSTOMIZED ALL SERIERS ACCORDING TO YOUR REQUERMENT | ||||
| Type | Core "E" Dimension | |||||
| A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | |
| EE13 | 12.6 | 6.5 | 4.5 | 3.7 | 8.9 | 3.7 |
| EE14 | 14.3 | 7.8 | 5.2 | 4.3 | 10.5 | 4.5 |
| EE16 | 16.0 | 8.2 | 5.7 | 4.7 | 11.3 | 4.7 |
| EE20 | 20.4 | 10.1 | 7.0 | 5.9 | 14.1 | 5.9 |
| EE25 | 25.0 | 12.8 | 8.7 | 7.5 | 17.5 | 7.5 |
| EE30 | 30.0 | 15.2 | 9.7 | 7.2 | 19.5 | 7.3 |
| EE32 | 32.0 | 16.4 | 11.2 | 9.5 | 22.7 | 9.5 |
| EE36 | 36.0 | 18.0 | 12.0 | 10.2 | 24.5 | 11.5 |
| EE42 | 42.0 | 21.0 | 14.8 | 17.2 | 29.5 | 15.2 |
| EE55 | 55.0 | 27.8 | 18.5 | 17.2 | 37.5 | 21.0 |
| EE65 | 65.0 | 32.8 | 22.2 | 20.0 | 44.2 | 27.4 |
| EE70 | 70.5 | 33.2 | 21.9 | 22.0 | 48.0 | 32.0 |
1).Features:
Has a strong anti-interference, distributed capacitance, impedance, attenuation of low transmission, firm
structure,can fine-tune the inductance, etc., are widely used in fax
machines, PBX.
2). Applicable frequency range: 20 to 100kHz :
