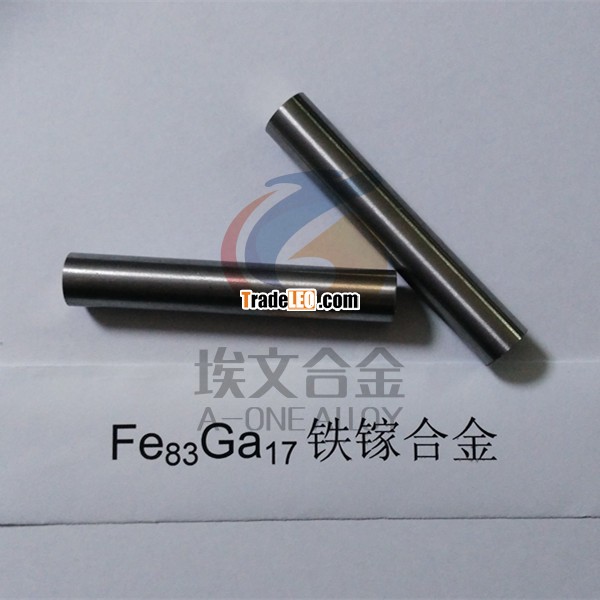

Galfenol Fe83Ga17 Giant Magnetostrictive Alloy Round Bar/ Wire

FeGa Alloy(Galfenol) is a magnetostrictive alloy comprised primarily of the elements iron (Fe) and gallium (Ga).

It was hypothesized that other magnetostrictive alloys had to exist that combined the mechanical robustness of Ni and the giant magnetostrictive response of Terfenol-D.

Galfenol exhibits a unique combination of mechanical and magnetostrictive (magnetic) properties that legacy smart materials do not.

Composition: Fe83Ga17

Magnetostriction λ,ppm(125～500 Oe, 12～36MPa):  180～300

Density(ρg),g/cm3:7.6

Curie Temperature(TC),℃:＞760

Relative Permeability(μr):32～180

Conductivity(ρ),10-6Ωcm:80

Tensile Strength(σb),MPa:＞450

Product size range:

Bar:　diameter φ6～25mm

Strip:　thickness＜1mm

Wire:　diameter＜φ3 mm(stock size: diameter 0.80mm and 0.5mm)

Any other request, pls feel free to contact us.
