Model:Dia:20mm-260mm

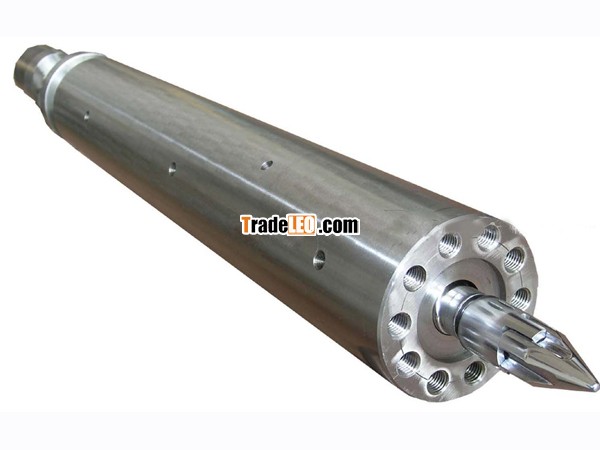

Nitriding injection screw barrel for plastic injection molding machine
injection screw barrel parameter: | |
Screw diameter | Φ20~Φ300mm, |
Maximum screw length | 10,000mm |
Barrel inner bore diameter | Φ400mm |
Mould Clamping Force | 100KN-35000KN |
Shot Weight | 15-30000g |
Screw can be mated with different heads. | Barrel can be mated with different nozzles. |
The compression ratio of the screw can be designed according to different products and mixtures. | |
Technical Parameter: | |
Nitride Case Depth | 0.4mm-0.7mm |
Nitride Hardness | 950-1050HV |
Nitride Brittleness | ≤Grade One |
Surface Roughness | Ra0.4um |
Screw Straightness | 0.015mm |
Duplex Alloy Depth | 1.5mm-3.5mm |
Duplex Alloy Hardness | HRC60-75 |
Chromium Coating Thickness | 0.025~0.10mm |
Reference Pictures:
Lucheng screw applicable plastic types :
The production of screw barrel type:
1.Injection screw barrel, injection Molding screw barrel,screw tips/screw nozzle,
2.Single screw barrel
3.Twin screw barrel
4.Twin Conical screw and barrel(Co-rotating,Counter)
5.Twin Parallel screw and barrel Co-rotating,Counter)
6.High wear Resistant screw and barrel
7.Screw barrel Assembly parts
8.Bimetallic Screw Barrel
9.Rubber screw barrel
10.Pin screw barrel
11.Force feed screw barrel
12.Planetary screw
13.Gear box
14.screw barrel for blowing molding machine
15.All other plastic machinery
The Packing: export standard
2012 Chinaplas exhibition in Shanghai：
Our main types of screw production are: "gradient type, mutant, PM separation type, shunt type, barrier type, the vacuum exhaust type, combined type, work type, speed type, etc.," is widely used in all kinds of rubber raw materials, such as: PE, PP, PVC, PS, ABS, PA, POM, PC, PSV, PTFE, PR, UP, PEC, PF, VF, MP, PMMA, PET, PBT, PPS, MPPO, PI, LCP, etc.. Lucheng screw with the advantages of location, services, domestic and foreign markets; to faster delivery, better prices to provide you with high quality barrel, screw products. "Excellence, pioneering and innovative" is our entrepreneurial spirit. "To provide high quality products" is our business philosophy, "give customers the most satisfied with the service" is our best effort from beginning to end requirements of the business objectives. Welcome to our factory.
