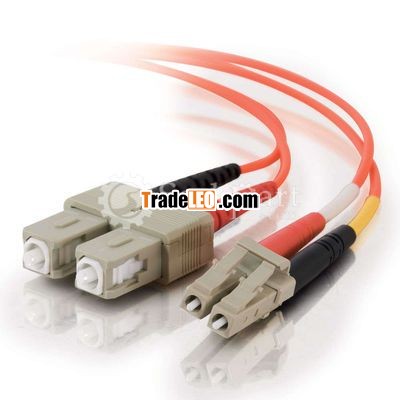

Fiber optic patch cable

optic fiber patch cable

optical fiber patch cable

fiber jumper

fiber optic jumper

fiber optic patch cord

fiber optic pigtail

optic fiber pigtail

optical fiber pigtail

Features:

Low insertion loss

High return loss

Good exchangeability

Good durability

High temperature stability

Telcordia GR-326&409

Application:

Fiber Optic Telecommunications

LAN (Local Area Network

FTTH (Fiber To The Home)

CATV&CCTV

High speed transmission systems

Fiber optic sensing

Specification:

Cable: G.652D/G657A,PVC,LSZH,simplex or duplex,0.9,2.0,3.0mm

Fiber:SMF-28e,SM 9/125um,MM 50&62.5/125um

Polish: UPC,PC,SPC,APC

Connector: FC,SC,LC,ST,E2000,DIN,D4,SMA,FDDI,MPO/MTP

Insertion Loss:

≤ 0.1dB (For Single mode Master)

≤ 0.25dB (For Single mode Standard)

≤ 0.25dB (For Multimode)

Return Loss(for single mode):

UPC ≥ 50dB;SPC ≥ 55dB;APC ≥ 60dB (typ.65dB)

Repeatability: ±0.1dB

Operating temperature:-40 C to 85 C

Geometry Requirement: (For Single mode)

Ferrule End face Radius:

7mm ≤ R ≤ 12mm (For APC)

10mm ≤ R ≤ 25mm (For Standard)

Apex Offset ≤ 30 μm (For Master

Apex Offset ≤ 50 μm (For Standard)

Undercut -50nm ≤ U ≤ 50nm
