Model:Paper cup forming machine HC-PC-S

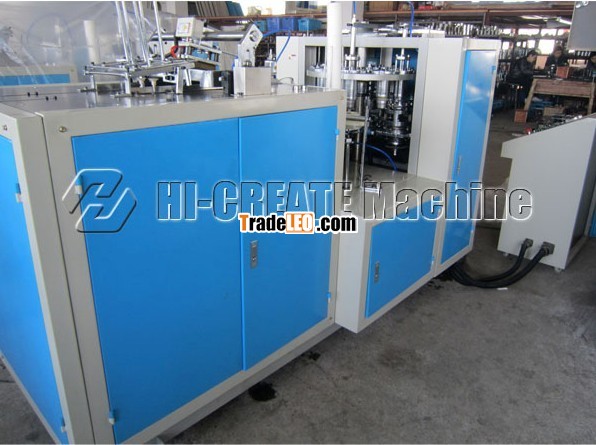

Paper cup forming machine HC-PC-S
Paper cup forming machine with multi-working station is an automatic machine,which has the function of photocell detection, failure alarm, counter and the advantages of humanism design, safer operation and easier maintenance.
Paper cup forming machine HC-PC-S makes one-side-PE-film-coated paper cups after running a whole procedure of automatic pre-printed fan-shape-paper feeding, cup-side-body sealing(heater), silicone-oil lubricating(for top curling, Dimethyl silicone oil 201,Food Grade), roll bottom auto punching, bottom pre-heating and pre-folding, main heating, bottom knurling, top curling and cup discharging.
Contacts: Lydia Lin
Skype:hcsales03
Tel:86-595-82050111
Technical Date:
Model | Paper cup forming machine HC-PC-S |
Paper size | 3oz12oz and other special size |
Ration Productivity | 4050 pcs/min |
Power Supply | 220V/50hz 380V/50hz |
paper material | 150400 GSM Single side PE |
Total power | 5 KW |
Overall dimensions | 2.58(L)X1.2(W)X1.4(H)(M) |
Net Weight | 1500KG |
Gross Weight | 2000KG |
