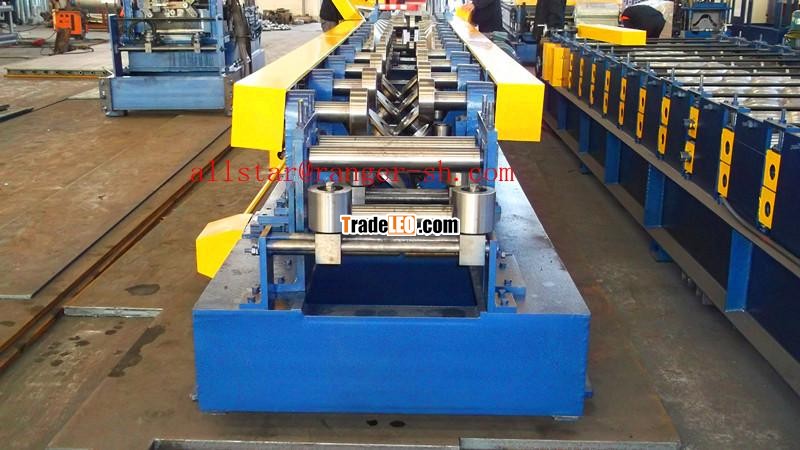

Quick-change c purlin roll forming machine
1.Technical data
Material | GI coil |
Thickness | 1.2-1.9mm((high strength material: min yield strength Fy = 450 Mpa). |
Main motor power | 15kw |
Dimension | 9800mm*800mm*1300mm |
Total weight | about 10 t |
Decoiler | 3 t |
Feeding and flattenling device | |
Roll forming machine | |
Forming station | 15 steps |
Shaft diameter | 80mm |
Forming speed | 8-14m/ min |
Transmission type | 1.5' chain transmission |
Machine frame stand | welded structural steel |
frame stand thickness | 18mm |
Punching & cutting & hydraulic station (punching is optional) | |
Electrical system |
2.payment term
Payment Terms | 30% T/T in advance, 70% T/T before shipment |
Delivery Time | Within 70 days after receipt of the down payment |
Installlation and commissioning | One or two engineer can be sent on request for the installtaion and comissioning of the machine . |
