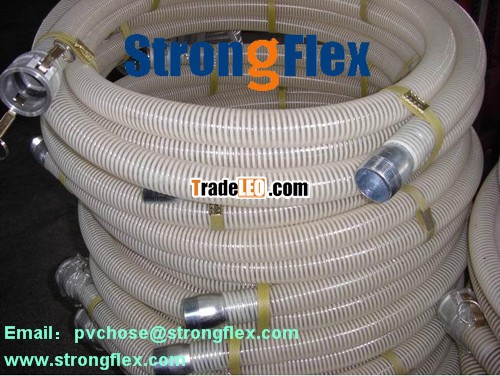

PVC Screw Suction Hose
Temperature range: -5ºC to +65 ºC
Feature: Transparent and good cold and hot resistance; Small bending radius and great ability of minus pressure resistance.
Applications: Drawing and conveying water, oil and powder in factory, agriculture, building.
SIZES | I.D X O.D. | LENGTH | W.P. | B.P. | Weight | Bend Radius | Packing Size | |
sizes | mm | M/Coil | Bar | Bar | kg/Coil | mm | D×H(mm) | |
3/4" | 19 X 25 | 30 | 8 | 34 | 10 | 100 | 680 | 200 |
1" | 25 X 32 | 30 | 8 | 32 | 11.7 | 130 | 730 | 220 |
1-1/4" | 32 X 40 | 30 | 8 | 30 | 15.3 | 180 | 800 | 200 |
1-1/2" | 38 X 46 | 30 | 8 | 26 | 17.6 | 220 | 830 | 250 |
2" | 51 X 60 | 30 | 7 | 24 | 23.5 | 300 | 1000 | 300 |
2-1/2" | 64 X 73 | 30 | 6 | 20 | 35.2 | 400 | 1200 | 310 |
3" | 76 X 86 | 30 | 5 | 20 | 41.6 | 500 | 1400 | 330 |
4" | 102 X 113 | 30 | 5 | 16 | 70.4 | 600 | 1800 | 450 |
5" | 127 X 139 | 30 | 4 | 13 | 102.4 | 650 | 2000 | 470 |
6" | 152 X 166 | 30 | 4 | 12 | 137.6 | 700 | 2200 | 500 |
