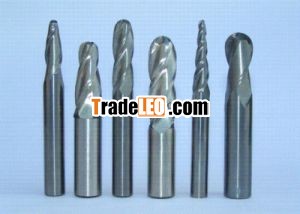

X-Series Mirco Grain Ball-nose end mill R0.5-R10mm, 2Flute-4Flute
Helix angle: 30 ° Upto: HRC45-50 Milddle Speed
1. Micrograin carbide rod:
WC=90%, Co=10%, TRS>3800N/mm2; Hardness>91.8HRA, Grain size: 0.6um; High qulaity of wearability and impact
2. Made by world latest 5-AXIS tools grinding machine, promise the quality and precision of cutter.
3. Super TiAlN, reduce the coeffiction of friction, and improve the tools life much.
4. Each end mill is inspected by Zoller measuring and inspected machine.

6. We accept the specification as your requirement.
6. Work Piece: Carbon steel, alloy steel, cast steel, tooling steel, mould steel, heat-treament steel. Aluminum alloy steel, Non ferrous alloy
(Order No) Cutting Shank Flute A.0. L
d D l L
R0.5×2×4D×75L×2T 1 4 2 75
R0.75×3×4D×75L×2T 1.5 4 3 75
R1.0×4×4D×75L×2T 2 4 4 75
R1.25×5×4D×75L×2T 2.5 4 5 75
R1.5×6×4D×75L×2T 3 4 6 75
R1.75×7×4D×75L×2T 3.5 4 7 75
R2.0×8×4D×75L×2T 4 4 8 75
R2.5×10×6D×75L×2T 5 6 10 75
R2.5×10×6D×100L×2T 5 6 10 100
R3.0×12×6D×75L×2T 6 6 12 75
R3.0×12×6D×100L×2T 6 6 12 100
R3.0×12×6D×150L×2T 6 6 12 150
R4.0×16×8D×75L×2T 8 8 16 75
R4.0×16×8D×100L×2T 8 8 16 100
R4.0×16×8D×150L×2T 8 8 16 150
R5.0×20×10D×100L×2T 10 10 20 100
R5.0×20×10D×150L×2T 10 10 20 150
R6.0×24×12D×100L×2T 12 12 24 100
R6.0×24×12D×150L×2T 12 12 24 150
R7.0×28×14D×150L×2T 14 14 28 150
R8.0×32×16D×150L×2T 16 16 32 150
R10×40×20D×150L×2T 20 20 40 150
