Spec:
  1. Forming speed: 8-12 m/min.
  2. Thickness of coil: 0.6-1.2 mm.
  3 . Width of coil: 914 mm.
  4. Effective Width:610mm
  5. Suitable Raw Materials: Pre-painted coil; Zinc coated plate.
  6. Step of rollers: 19 steps.
  7. Material of rollers: Good 45# steel, rigid chrome coated.
  8. Power of main motor: 7.5kW.
  9. PLC Control System: Using Mitsubishi PLC Control the quantity, length automatically, LCD screen.
 10. Main Roll forming machine dimensions: 8900mm x 1350mm x 1300mm.

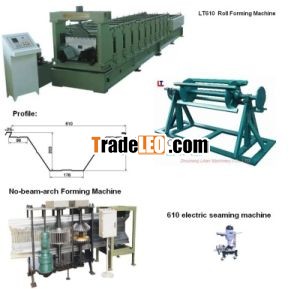

The equipment include:
 1. Mechanical Un-coiler,  1 set
 2. Roll forming machine,  1 set
 3. Hydraulic cutting,     1 set
 4. Hydraulic station,     1 set
 5. Electric controlling system,  1 set
 6. Product rack (un-powered) ,    1 set
 7. Electric seaming machine,     1 set
 8. Instruction Book,      1 piece
