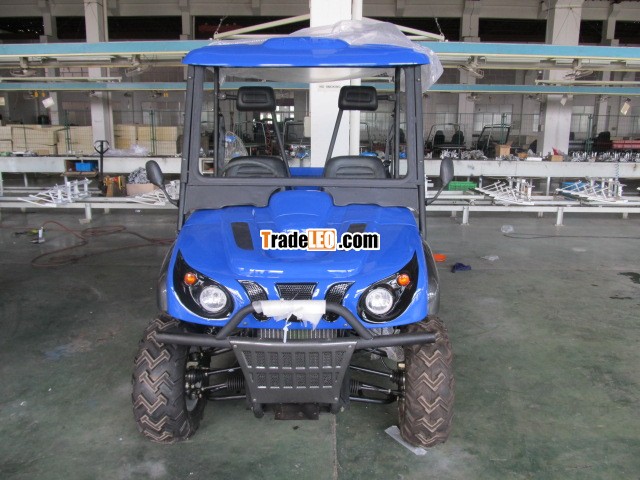

Model:650cc UTV
Send Inquiry
| WHOLE MACHINE DIMENSIONS | |
| Overall Length : | 2700mm |
| Overall Width: | 1450mm |
| Overall Height : | 1830mm |
| Wheelbase : | 1750mm |
| Front Track : | 1450mm |
| RearTrack : | 1450mm |
| Ground Clearance: | 250mm |
| ENGINE | |
| Type : | 2 cylinders,4-Stroke,water-cooled |
| Bore x Stroke : | 76mm×71mm |
| Displacement : | 644 cc |
| Compression ratio : | 8.4:1 |
| Carburetor : | BJH101E |
| Max Power : | 20.6kw/5300rpm |
| Maximum Torque : | 44/2700~3300Nm/r/min |
| Starting : | Electric |
| Ignition : | C.D.I |
| Lubrication : | Force & Splash |
| Transmission : | manual clutch, 4 shift/Reverse/Automatic |
| Spark Plug : | F6T or F6TC |
| Plug gap : | 0.7±0.1mm |
| Fuel type : | RQ93 (unleaded) |
| Lubricate oil : | SAE-15W/30 |
| CAPACITIES | |
| Turning radius : | 157.5 in(4000mm) |
| Fuel tank : | 25.0L |
| Engine oil : | 2900ml |
| Coolant : | 4000ml |
| Starting : | |
| Climbing : | 20°-35° |
| Battery : | 12V36Ah |
| Head Light : | 12V 80W/Both |
| Tail Light : | 12V 52W/Both |
| Fuse : | 35A |
| Max speed : | 76 km/h |
| CHASSIS | |
| Front, Rear brake : | Hydraulic disc, right foot control |
| Front tire : | 25×10-12 |
| Rear tire : | 25×10-12 |
| Front Suspension : | Independent Dual A-Arm |
| Rear Suspension : | Independent Dual A-Arm |
| Drive Train : | 2WD/4WD Shaft |
| T IRE PRESSURE | |
| Front : | 205kpa 2.1kg/c㎡ 30psi |
| Rear : | 205kpa 2.1kg/c㎡ 30psi |
| WEIGHT | |
| Max load capacity : | 500kg |
| Net Weight : | 565kg |
| ConTAINER LOADS | |
| 20’ CONTAINER: | 6 PCS |
| 40’ HQ CONTAINER: | 14 PCS |
