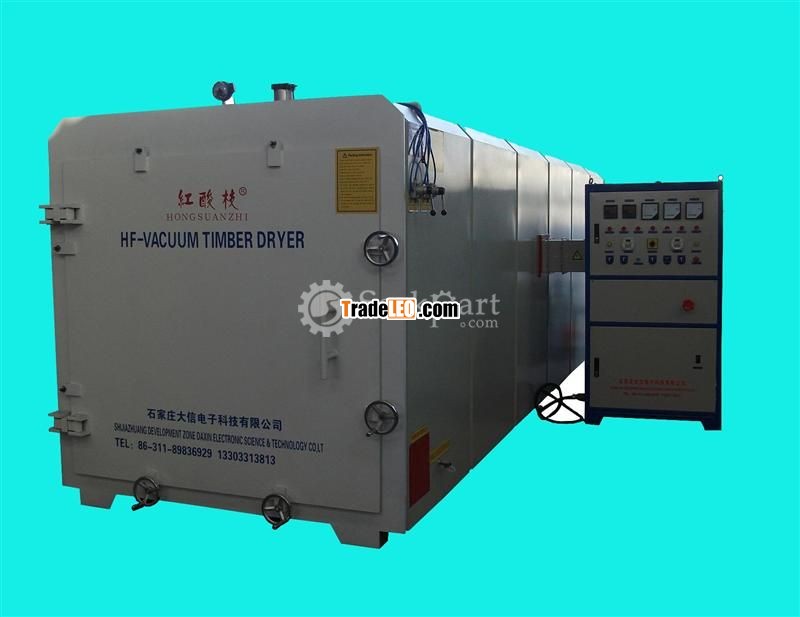

High frequency vacuum wood dryer machine

Two main parts of the machine: 1) High frequency generator 2) Vacuum wood dryer oven

To meet the specification of wood with the length 5.5-6m, the width 1-1.2m and height 0.7-1m

High Frequency Vacuum Wood Dryer Machine is the result of design combining High frequency medium heating technology and Vacuum cryogenic dehydration technology. The working principle of HF medium heating: in the high frequency electrical filed, friction of medium molecule generates heat. Keeping the wood in the frequency electrical filed, thus the inside & outside of wood will be rapidly heating. Meanwhile, vaporizing temperature of water will be decreased under vacuum conditions.

Specification

Technology data (3 cubic meters):

1. Capacity of dry oven: 3 cubic meters

2. Vacuum degree: 0——-0.093Pa or according to the need

3. Drying temperature: ≤90℃

4. Final moisture content of wood: 18%-20% or could be setting as per-request

5. Maximum dehydration rate:90 KG/ 24 hours

6. Power of high frequency machine: 10KW

7. Frequency of high frequency machine: 6.78MHz

8. Power input of vacuum pump: 4KW

9. Maximum input total power: 13KVA

Technology data (8 cubic meters):

1. Capacity of dry oven: 8 cubic meters

2. Vacuum degree: 0——-0.093Pa or according to the need

3. Drying temperature: ≤90℃

4. Final moisture content of wood: 18%-20% or could be setting as per-request

5. Maximum dehydration rate:220KG/ 24 hours

6. Power of high frequency machine: 30KW

7. Frequency of high frequency machine: 4MHz

8. Power input of vacuum pump: 4KW

Maximum input total power: 40KVA

Technology data (10 cubic meters):

1. Capacity of dry oven: 10 cubic meters

2. Vacuum degree: 0——-0.093Pa or according to the need

3. Drying temperature: ≤90℃

4. Final moisture content of wood: setting as per-request

5. Maximum dehydration rate:310KG/ 24 hours

6. Power of high frequency machine: 40KW

7. Frequency of high frequency machine: 4MHz

8. Power input of vacuum pump: 4KW

9. Maximum input total power: 50KVA

Package: Standard export packing, plastic and foam, fixed by wood pallet, shipped in container by sea
