(1)Description:

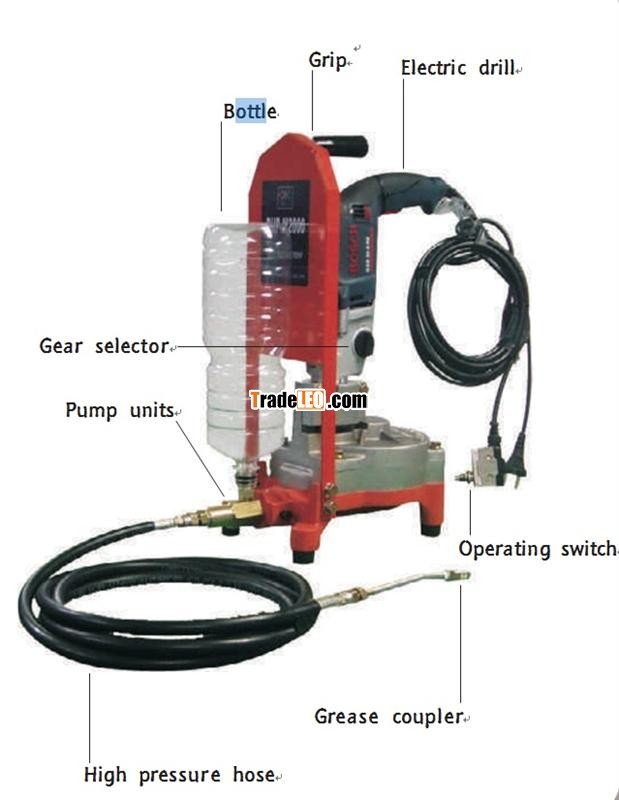

DHP-M1000 injector is a single type high pressure injector designed to apply urethane resin and epoxy injection material to the crack part. As this electronic injector is easy to handle, easy to change consumables, and compact, while providing high discharging pressure, it is widely used in concrete repairing and reinforcing works.

This extremely lightweight and powerful injection pump can be used for the polyurethane and epoxy injection line of our products. Suitable for mid-size jobs and daily use this is the perfect machine for waterproofing contractors performing commercial work and residential injection. With this pump it is a snap to get in and out of basements and confined areas as found on many job sites.

(2) Usage

1 . Polyurethane foam grout injection.

2.  Usage resin injection.

3 . Injection into steel plate, loose part and crack areas.

(3) Specifications

Power supply                                             AC110V,220V/800W

Max. Pressure                                            7500 psi

Recommended Pressure                           3500 psi

Opreating method                                     Electric Drill

Weight                                                       13kg

Flow Rate                                                  0.55 litre/min

                                                                6Φ Pump                            0.55 litre/min

Row Rate                                                8Φ Pump                            0.55 litre/min

                                                               10Φ Pump                           0.55 litre/min

                                                               12Φ Pump                            1.1 litre/min
