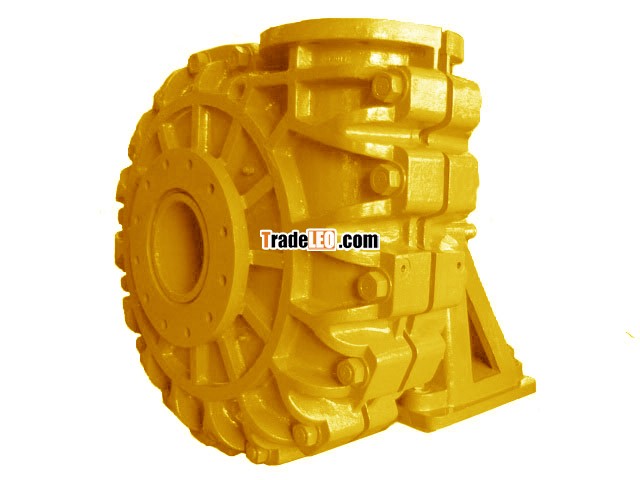

slurry pump description:

Hebei Tongda Pump & Valve Group Co., Ltd the main pump products including slurry pump, chemical pump, gravel pump, sewage pump, multistage pump with hjgh lift, centrifugal water pump and self priming pump, could meet various requirements of all the customers
Centrifugal slurry pumps are mainly used to pump high-hardness, strong-corrosion and high-concentration liquids that contain suspended solid particles, such as finished ores, refuse ores, ashes, cinders, cements, mud, mineral stones and etc.

slurry pump specification:
Size (discharge): 1" to 18" (25 mm - 450 mm)
Capacity: To 3400 m3/hr
Head: T0 120 m
Particle Size: To 260 mm
Concentration: To 60%

slurry pump detailed specification:

1. Horizontal, cantilevered, centrifugal, single stage slurry pump

2.Long bearing life: The bearing assembly is with large diameter shaft and short overhang.

3. Wear resistant and anti-abrasion wet parts: A05, A07, A33, A49 and rubber etc. They are completely interchangeable with each other

4. Easily replaceable liners: Liners are bolted to the casing.

5. Easy adjustment of impeller: An impeller adjustment mechanism is provided below the bearing housing.

6 Discharge direction can be positioned at intervals of 45 degrees.

7. Simple maintenance throat-bush: the mating face of the throat bush is tapered, so the wear is reduced and removal is simple.

8. Sealing type: pcking seal,impeller sealing and mechanical seal.

9. Widely application: They are designed for handling abrasive, high density slurries in the metallurgical, mining, coal, power, building material and other industrial departments.

10. Welcome OEM.
