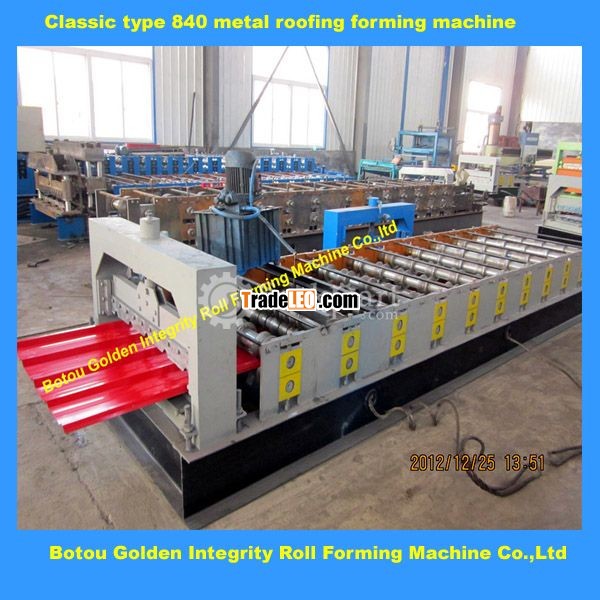

metal roofing roll forming machine
1.Specification
Dimensions | 6500*1300*1400mm |
Large frame | 350H steel |
Machine weight | 6T or so |
Middle plate | 14mm |
Roller station | 840-13;900-11 rows |
Rolling wheel | Forging 45# steel |
Kind of drive | Driving with 1 inch chain |
Main power | 3kw with reducer |
Diameter of roller | 72mm with 45# steel conditioning |
Rolling speed | 8-12m/min |
Rolling thickness | 0.2-0.8mm |
Feeding width | 1000mm |
2.Automatic system(The PLC can be designed according to customers' requirement)
Pump station | 3kw |
PLC | Panasonic |
Transducer | Taiwan"Delta" |
Encoder | Wuxi's "REP"or "XINYA" |
Switch | "CHINT" or "DELIXI" |
3.Component
Uncoiler,platform,main machine body,station,cutting device,pressing device,PLC control |
