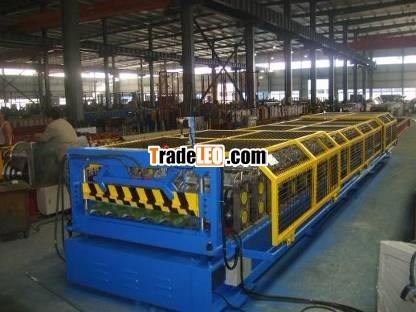

Roll Forming Machine Duplex - AG Roof Panel Top & Wall Panel Bottom

Specifications
Forming Stations: 18
Coil Width: 1.04m (41") top and 1.09m (43") bottom
Coil Thickness: 6mm (.236")
Main Structure: Steel
Main Motors: 3KW x 2
Drive System: Chain Transmission
Roller Material: Chromed Heat Treated Steel
Main Shaft Diameter: 70mm (2.75")
Working Speed: 20m/min (63ft/min)
Cutting System: Hydraulic Shear
Hydraulic Cutting Power: 3KW
Cutting Blade Material: Cr12 Heat Treated
Length Measurement: PLC
Length Tolerance: +2mm (.078")
Overall Dimensions: 26' x 5' x 4'

Control Panel
Automatic Length Measurement
Automatic Quantity Measurement
Motor Overload Protection
System Over Current Protection
Short Circuit Protection
Control Panel Includes:
Mitsubishi Touch Display (or equivalent)
Panasonic Transducer
Omron Encoder
