Model:sy-a500

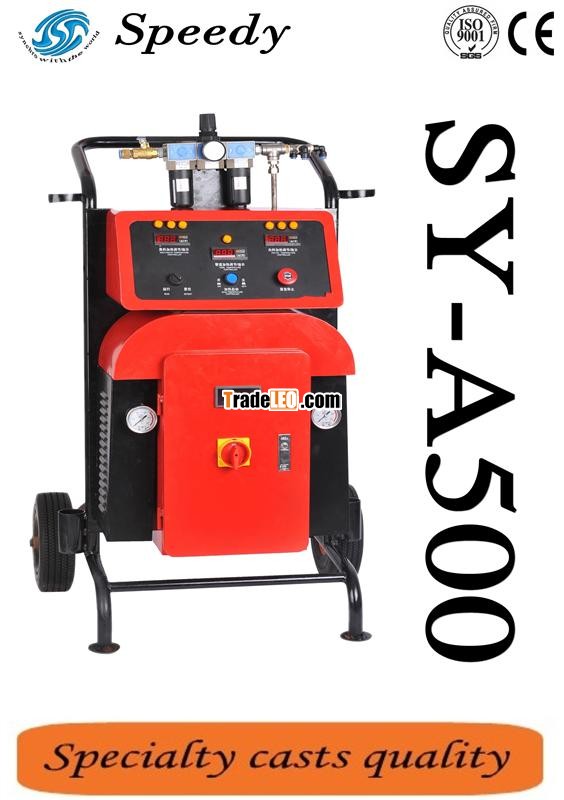

SY-A500 high quality polyurethane spray foam insulation
Brief introduction:
Polyurethane foaming material has many advantages such as indulation,heat proofing,noise proofing and anticorrative etc.Widely used in many areas.Environmental friendly and energy-saving.The insulation and heatproofing function are better than any other materials.
Application:
Mainly for injection construction,spraying construction,buffer packaging.
For spraying:Building exterior and interior wall spraying,cold storage spraying, cabinet insulation and noiseproofing of car&bus,roof insulation and waterproof,refrigerated trucks and industrial anticorrative spraying.
For injecting:solar water heater,refrigerator,freezer,pipe joints,door-crack padding,products padding&packaging,roller shutter door,security door,road construction,wall noiseproofing,landscape modeling etc.
Technical specifications:
Heating power 9000w
Max working voltage | 20Mpa | Driving mode | Fully pneumatic |
Max output flow | 9kg/min | Voltage requirements | 2-ph 220V 50Hz/3-ph 380V 50Hz |
Insulation material mixing ratio | 1:1 or 2:1 | Pneumatic source | 0.7-0.9Mpa 1m³/min |
Heating mode | A,B,C heats independently | Machine size | 800*700*1200mm |
Heating temperature range | 0-80°C | Net weight | 140KG |
Cleaning mode | Free cleaning | Max feeding tube length | 90m |
Standard configuration:
Main engine:1 unit
Spray gun:1 piece
Feeding pump:2 pieces
Material insulation pipe:15m/set(can be up to 75m)
Short tube connect with gun:1.5m
1 set of accompanied accessories
