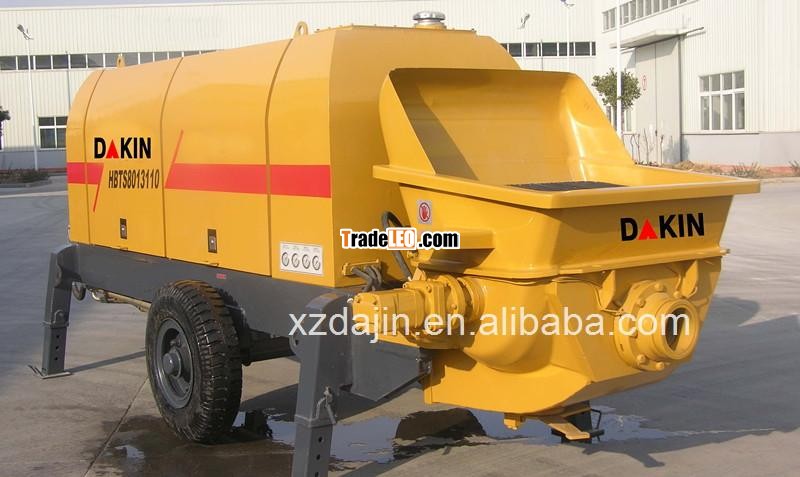

Model:HBTS80-16-110
Send Inquiry
| Model | HBTS80-16-110 |
| Length(L) | 6500mm |
| Width(W) | 2100mm |
| Height(H) | 2250mm |
| Hopper Capacity | 0.8m³ |
| Feeding Height | 1380mm |
| Weight | 6200kg |
| Theoretical delivery pressure | 16Mpa |
| Theoretical concrete output | 80m³/h |
| Hydraulic System | Open |
| Engine Type | Motor |
| Power | 110kw |
| Rotation speed | 1480r/min |
| Distribution valve | S Pipe Valve |
| Hydraulic Cylinder Diameter | φ140mm |
| Concrete Cylinder Diameter | φ200mm |
| High/Low Pressure Switch | Available |
| Hydraulic Oil Tank Volume | 580L |
| Max. Vertical Reach | 130m |
| Hydraulic Pump | Bosch Rexroth/Kawasaki |
| Hydraulic Elements | imported |
