Model:SKMP-001
- 1. Machine Type SKMP001-250-7
- 2. Clamping Unit System
l The machine adopts hands type of operation, which can guarantee the safety in the operation
l The pressure and speed of the clamping system are adjustable
l It uses the imported WIKA shockproof meter to indicate the compound die pressure
l Five-cylinder integral type clamping unit system
l It has the soft clamping unit function.
- 3. Injection System
l The injection pressure and the injection speed are adjustable
l The machine uses the imported WIKA shockproof meter to indicate the injection pressure
l The machine is equipped with the MGP function
- 4. Temperature Control System
l Single point of control with 32 temperature points
l The machine can alarm when the temperature is abnormal
- 5. Electrical Control and oil hydraulic System
l It is equipped with the hydraulic motivation and electric heating system. And the power supplies exist separately which can avoid the mutual interference.
l The control voltage uses the low voltage mode
l Equipped with the emergency stop button
l It can alarm with display the warning light when the temperature and position of oil goes beyond the normal range.
l The oil-way and control valve centralized design, which gains a good cushioning effect.
- 6. Others
l Equipped with three-side shield to ensure the safety and cleaning. Furthermore, it alarms and displays the warning light when the machine is not in the good working order.
l Security light curtains maintain the safety production
l The table-board thread，ejector rod position, and the sizes of injection bar and thermocouple connection can be customized.
l Power supply: 380v 50Hz
l Heating electric power: 220/380v 50Hz
l Equipped with the independent lighting switch/LS
l Equipped with two plugs(380v/25A& 220v/15A)
l It is convenient to operate and change the mould
l The noise ≤70 db

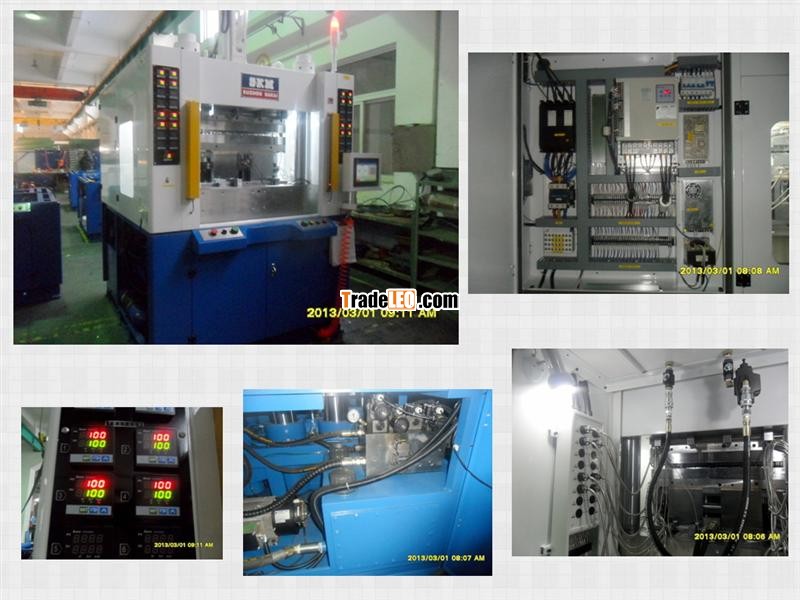

l The standard color of machine: half white half blue ( please refer to the picture)
