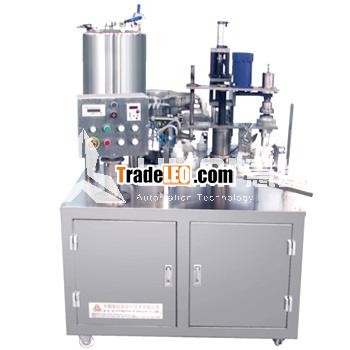

SGX-1 type is the instant Glue Filling & Screw-cap Sealing Machine. SGX-2 type is the Liquid Filling & Screw-cap Sealing Machine. These machines are specially designed and suitable for the filling & sealing of plastic tubes.

Procedure: Manual or automatic installation of the bottle filling and capping.

Working Process: The self-motion suction can ensure the ideal degree of cap screws. This machine uses the variable speed control and photo electricity control. Liquid material or the 502 glue is applied to fill and cap this machine. This machine is not only the ideal equipment for trading and adhesive producing, but also suitable for the manufacturing of medicines, cosmetics, condiments, auxiliary materials and soaked bean-noodles.

Specification:

1. Voltage: 220V± 10%
2. Mechanical Capacity: 10-40 time/min (stepless)
3. Filling Quantity: 2-70g
4. Filling Precision: >99%
5. Capping Accuracy: 99% (up to standard)
6. Tube Diameter: 5-15mm.
7. Number of Tubes base: 16
8. Power: 1.5KW
9. Weight: 400kg
10. Dimension: 1000mm*600mm*1700mm
