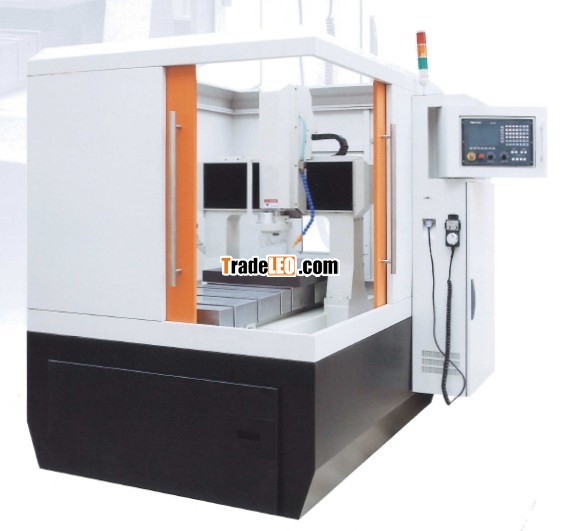

5080s Full-Shell Engraving Machine (CNC Router)
2016-11-02 20:03  Views:41
Price:Negotiable
Model:5080S
Send Inquiry

Suitable for first article processing, mold processing and product processing.

Drive systemAC servo
X/Y/Z motion positioning accuracy±0.012/300mm
X/Y/Z repeat positioning precision±0.008mm
Idle fast movement speed12m/min
Maximum cutting speed6m/min
Maximum tool diameter12mm
Spindle power/speed3kw / 7000-24000rpm
Working stroke(XYZ)500x800x160 mm
Table size600x850 mm
Outline dimensions1800x1800x2100 mm
Weight2200kg
The height of the space290mm
Motor power3kw
