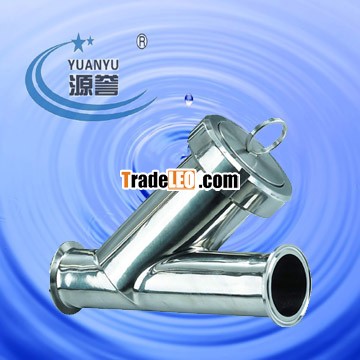

sanitary y type strainer

1)Specification: DN15-125, 1" -4"
2)Standard: DIN3ASMSISOIDF
3)Material: SUS304SUS316L, AISI304, AISI316L
4)Connection mode: Weld, clamp, thread etc.
5)Seal: EPDM/NBR
6)Screen: metal mesh/perforated plate
7)Work pressure: 0~10bar.
8)Work temperature: -20~135degree(EPDM as seal)
9)Temperaturerange: -10~250degree.
10)Application: Beer, Milk, Beverage, Pharmacy
11)Screen: metal mesh, perforated plate.
12)type of body: Straight /y-type

Work priciple:
When with larger solid particles or impurity of media through the filter, these larger solid paticles and impurites will be fitered and stay in certain specification filter inside. Thus preventing the solid particles and impurities into subsequet pipes, filtered medium criterion by export outflow, achieve the requirement.
