Model:HX2AM

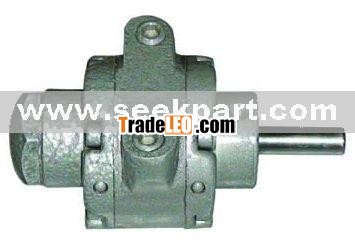

Detailed introduction to vane air motor:
11
product parameters:
|
Model | Operation data | Maximum torque | ||||||||
| power | torque | Rotate speed | Air consumption | Rotate speed | torque | |||||
| hp | kw | Nm | Ib.in. | rpm | m3/h | cfm | rpm | Nm | Ib.in. | |
| HX1AM | 0.93 | 0.68 | 2.20 | 19.5 | 3000 | 49.5 | 30 | 350 | 3.05 | 26.10 |
Key features:
simple structure,small size,light weight,high horsepower,easy to operate and maintain,aterresistant,fire protection,moisture proof and explosion proof.It can be operated in the tough environment which is damp,high-heat,excessivedust and other poor wrking environment.
working principle:
with compressed air as actuation medium,blade air motor makes use of the expansion of compressed gas,converts pressure energy into mechanical energy.
vane air motor:
1.guaranteed positive start-up
2.instantly reversible
3.oil-less operation possible
4.portable,reliable
application:
The air motors are widely used in rock drilling of mine,drilling,ship,metallurgy,chemical engineering,and papermaking ect.
