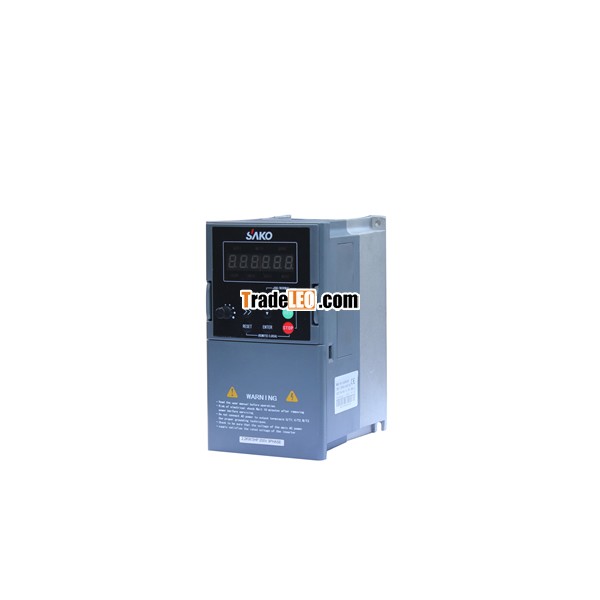

2.2KW Three phase 400V Frequency Inverter Driver Motors
2016-11-02 20:31  Views:52
Price:Negotiable
Model:SKI-E2D2G-3000
Send Inquiry

SKI-E series vector control high performance frequency inverter

Inverter Model(G:Constant Torque Load,P:Fan or Pump Load)Input VoltagePower G/P(KW)Output Capacity (KVA)Output Current G/P(A)Suited Motor G/P(KW)Dimension(mm)
SKI-E0D4G-2000Single/Three Phase 200V 50Hz0.4/-1.0/-3.2/-0.4/-149x105x132.6
SKI-E0D75G-2000Single/Three Phase 200V 50Hz0.75/-2.0/-6/-0.75/-
SKI-E1D5G-2000Single/Three Phase 200V 50Hz1.5/-2.4/-8/-1.5/-189x105x144.8
SKI-E2D2G-2000Single/Three Phase 200V 50Hz2.2/-3.7/-11/-2.2/-
SKI-E0D75G-3000Three Phase 400V 50Hz0.75/-2.6/-3.4/-0.75/-149x105x132.6
SKI-E1D5G-3000Three Phase 400V 50Hz1.5/-3.7/-4.8/-1.5/-
SKI-E2D2G-3000Three Phase 400V 50Hz2.2/-4.2/-6.2/-2.2/-189x105x144.8
SKI-E3D7G-3000Three Phase 400V 50Hz3.7/-6.6/-8.2/-3.7/-
SKI-E5D5G7D5P-3000Three Phase 400V 50Hz5.5/7.511/1414/185.5/7.5350x123x191.5
SKI-E7D5G11P-3000Three Phase 400V 50Hz7.5/1114/2118/277.5/11
SKI-E11G15P-3000Three Phase 400V 50Hz11/1521/2627/3411/15453x153x216.9
SKI-E15G18.5P-3000Three Phase 400V 50Hz15/18.526/3134/4115/18.5
SKI-E18.5G22P-3000Three Phase 400V 50Hz18.5/2231/4041/5218.5/22480x180x278.2
SKI-E22G30P-3000Three Phase 400V 50Hz22/3040/5052/6522/30
SKI-E30G37P-3000Three Phase 400V 50Hz30/3750/6165/8030/37560x180x278.2
SKI-E37G45P-3000Three Phase 400V 50Hz37/4561/7380/9637/45
SKI-E45G55P-3000Three Phase 400V 50Hz45/5573/9896/12845/55750x273x326.2
SKI-E55G75P-3000Three Phase 400V 50Hz55/7598/130128/16555/75
SKI-E75G90P-3000Three Phase 400V 50Hz75/90130/153165/18575/90766x419x340
SKI-E90G110P-3000Three Phase 400V 50Hz90/110153/170185/22490/110
SKI-E110G132P-3000Three Phase 400V 50Hz110/132170/211224/260110/132976x479x401
SKI-E132G160P-3000Three Phase 400V 50Hz132/160211/230260/302132/160
SKI-E160G185P-3000Three Phase 400V 50Hz160/185230/260302/340160/185986x545x418
SKI-E185G220P-3000Three Phase 400V 50Hz185/220260/340340/450185/220
SKI-E220G250P-3000Three Phase 400V 50Hz220/250340/360450/470220/250
SKI-E250G280P-3000Three Phase 400V 50Hz250/280360/390470/520250/2801190x737x490
SKI-E280G315P-3000Three Phase 400V 50Hz280/315390/460520/605280/315
SKI-E315G350P-3000Three Phase 400V 50Hz315/350460/520605/640315/350
Technical Index
InputRated Voltage and Frequency400V/50Hz/60Hz,Voltage:±15%;Frequency:±5%
200V/50Hz/60Hz,Voltage:±15%;Frequency:±5%
Rated VoltageThree Phase:400V(proportional to input voltage)
Three Phase:200V(proportional to input voltage)
OutputRated voltageThree-phase 0~input voltage VAC
Control FunctionControl MethodSVPWM
Control ModeV/F Control/Current Vector Control
Torque FeatureWith torque compensation and slip compensation, start torque can reach 150% at 1.0Hz
Frequency Control Range0.1~400Hz
Frequency Accuracy (Temperature Changing) Digital Instruction:±0.01%(-10℃~+40℃)
Analog Instruction: Max. Frequency x 0.2%Hz (25℃±10%)
Setting ResolutionDigital Instruction:0.01Hz; Analog Instruction: Max. frequency x 0.1%Hz
Output Resolution0.01Hz
Overload capacityGeneral Mode (G):150% rated output current for 1 minute
　Blower/Pump Mode (P):120% rated output current for 1 minute
Frequency Setting Signal0~10V(20kΩ),0-4~20mA(250Ω)
Acceleration/Deceleration Time0.0~3600 seconds (acceleration/deceleration time shall be set respectively)
PerformanceBraking Torqueabout 20% without braking resistor, and about 125% with braking resistor
V/F Mode Classes15 preset V/F mode and programmable V/F mode
Instantaneous Over CurrentGeneral Mode(G):about 250% AC motor driver rated current
Blower/Pump Mode(P):about 200% AC motor driver rated current
Over LoadGeneral Mode(G):150% rated output current for 1 minute before sliding stop
Blower/Pump Mode(P):120% rated output current for 1 minute before sliding stop
Over VoltageMotor stops sliding when rectifier output voltage exceeds 410V(200V class)/820V(400V class)
Under VoltageMotor stops sliding when rectifier output voltage drops down to 190V(200V class)/380V(400V) or lower
Instantaneous Power-Failure CompensationInstant stop when instantaneous power-failure lasts for 15ms or longer.(Default setting) According to standard setting, if the power –failure is shorter than 2 seconds, continue operation.
Heat Sink OverheatThermistor protection, takes effect when temperature exceeds 105Ω
Speed Loss ProtectionSpeed loss protection during acceleration, deceleration and constant speed operation
Grounding FailureElectronic circuit protection, takes when leakage current reaches 50% of AC motor driver rated current.
EnvironmentEnvironment Temperature/Humidity-10℃~+40℃, 90%RH and lower (no dewing)
Operation LocationAltitude below 1000M,indoor use(no corrosive gas, liquid, no dust)
Storage Temperature-20℃~60℃
VibrationBelow 20Hz 9.8m/s2(1G) , 20~50Hz 5.88m/s2(0.6G)
