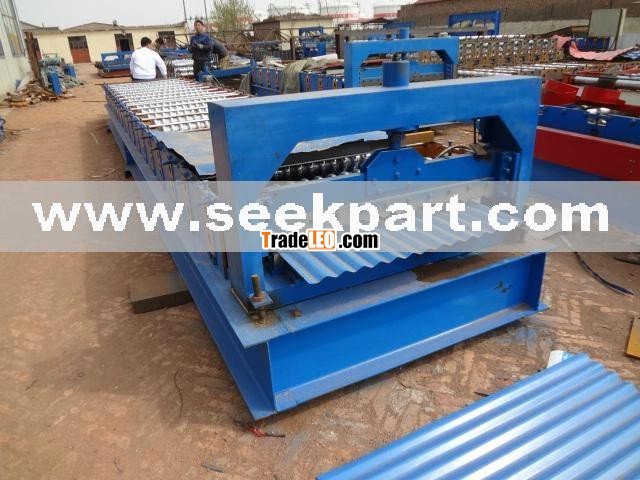

Corrugated Tile Roof Forming Machine

A) Technical Data

1. Decoiler: Manual Decoiler

2. Weight Capacity Of Decoiler: 5 Ton

3. Main Motor Power: 5.5 Kw

4. Hydraulic Motor Power: 2.2 Kw

5. Roll Stand: 13

6. Raw Material Width: 1000mm, 1200mm ( or according to customers requested )

7. Thickness Of Raw Material: 0.2-0.8 mm

8. Necessary Covered Width: 820, 1025mm ( or according to customers requested )

9. Machine frame stand: Welded structural steel

10.Thickmess of Fame Steel: 16mm

11. Type of forming machine: Single station with chain transmission

12. Material of Roller: High grade 45# forge steel, Polished and coated with 0.05mm Chrome Surface.

13. Transporting Type: Chain Transmission

14. Material Of Chain: High Grade 45#, Heated and quenched HRC 45-50

15. Main Axis Material: High grade 45#

16. Axis Diameter: 70mm

17. Working Speed: 10-15 m/min

18. Voltage: 380V, 3 Phase 50Hz ( or according to customers local requirement )

19. Material Of Blade: C r 12

20. Heat Treatment of Cutting Blade: HRC 50-60

21. Type of Cutting: Hydraulic cutting

22. Electrical Control: PLC Frequency Control System with touch screen

B) Work Flowing

Hydraulic Decoiler --- Fedding Guide --- Roll Forming --- Cut-to-length --- Run out table

C) Equipment

Decoiler, Feeding guide, main roll forming machine, Hydraulic cutting device. Hydraulic Station, PLC computer control, Output table
