The Diverter

The main functions of the Diverter

Diverter System is a key component of offshore drilling mostly,and it always services the surfaces layer drilling before BOP.The diverter assembly is the uppermost component of the riser system.It is not used to shur or seal the well completely,but to either direct the teturing drill fluit or control the blowout and surface layer gas,when encountering the gas,the diverter can close off around drillpipe or casing,and open the special direction vent line on board at the same time.with the platform manifold,The gas will be guided and Choked at special point.

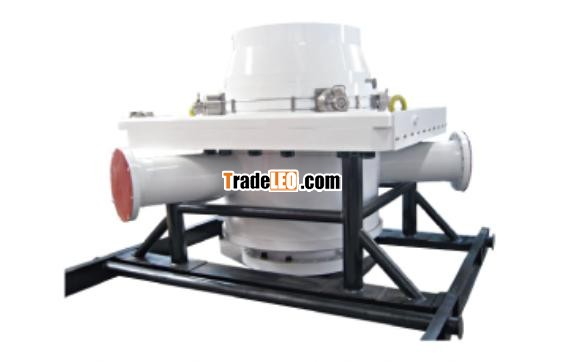

30”-500psi Diverter(complete shut off)

Used on the majority of floating rigs

Complete open-hole shutoff with 20”through-bore

Switch on or off quickly

Housing accommodates large diameter rise buoyancy modules

High capacity systems available for supporting the Riser String from Diveter housing in emerncy hang-off situations

30”-500psi annular blowout preventer

Bore:762.2mm              working pressure             3.5Mpa

Volume for Closing 245L      Volume for opening

Control pressure 8.4-10.5Mpa   manufacture specification         API SPEC 16A

Dimension   2070 x 2070 x1749    weight    10973KG

Top connection               Studded:MSS 30” class 300 R95 SST

Bottom connection            Flange:MSS 30”class 300R95  SST

My company can produce other size:29 1/2"-500psi, 37 1/2" -500psi,49 1/2"-500psi Diverter.
