Main parametres:

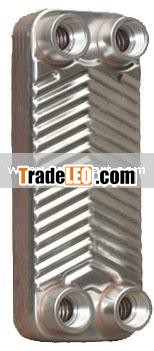

Tag: Brazed plate heat exchanger

Size: As per buyer's specification
Heating acreage per flake: 0.012 square meters
Maximum Flux: 4cubic meters /h
Material: 316L or 304 stainless steel
Brazing material: Purity 99.9%copper or nickle
Thinckness of the plate: 0.3mm
Stagnant fluid: 0.018L/per dypass
Maximum quantity of the falkes: 60

Design pressure: 3.0Mpa
Testing pressure: 2.0MPa or 4.5MPa
Designing temperature: -195 to +220 centidegree
Connection way: Water side: G1/4 to 3/4; Liquid side: 6.5 to 19.2 screw thread/jointing
Capacity of heating exchange: 1-5KW
Usage: Used in wall mounted boilers, cooling systems and water heaters.
