Model:JP075
Send Inquiry

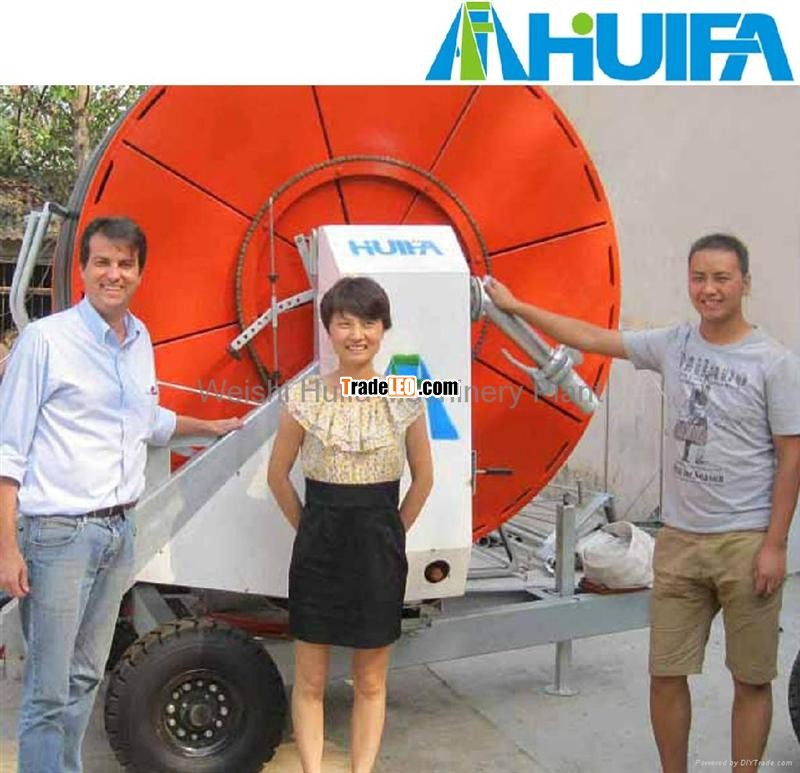

Hose reel irrigation system with boom:
Girder length | 26m |
Covering width | 36m |
Water flow | 13-60m3/h |
Pressure | 0.3-1.00Mpa |
Nozzle diameter | 4.4-7.5mm |
Working pressure | 0.10-0.20Mpa |
Sprinkling range | 1.0-5.5m(sprinkling range 36m) |
Rainfall | 8-50mm |
Degree of uniformity | > 0.85 |
The girder adopts stainless steel pipe, length is 26m.
Can use the AS26m girder cantilever type if the plant request small rainfall. With the advantage of lower pressure, smaller water-drop, higher water distribution uniformity, small influence for wind.
