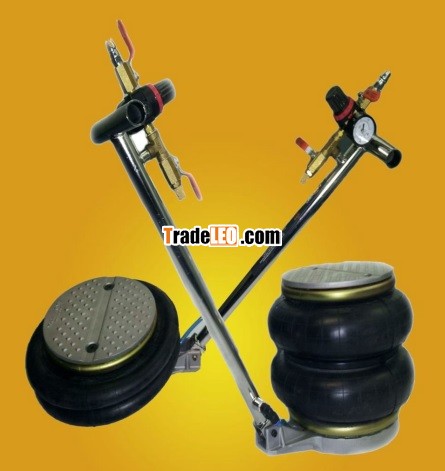

Youil's Air Lifting Jack, is one of the innovative items among our Air Spring and Suspension system division initially designed for emergency usage to lift vehicles for replacing a deflated pneumatic tire. Since its successful launch to emergency and towing shops operated by major Korean insurance companies in 2010, AIR JACK, has since been widely supplied nationwide.
| Specifications | |
| Lifting Capacity | 3 Tons (2,722 kgs. / 6,614 lbs) |
| Minimum Lift Height | 130 mm (5.1 in.) |
| Maximum Lift Height | 340 mm (13.4 in.) |
| Operation | Air |
| Working Pressure | 1 ~ 7kgf/cm² / (14 ~ 100psi) / (0.1 ~ 0.69MPa) |
| Appropriate Operating Pressure | 5kgf/cm² / (71psi) / (0.49MPa) |
| Air Inlet Size | 04-Jan |
| Safety Valve | Included, with Air Regulator and Gauge. |
| base L x W | 920 mm x 290 mm |
| Endurance Test | 20kgf/cm² / (285psi) / (1.96MPa) |
| (Destruction, Max. Pressure) | (Youil Laboratory Measurements) |
| Carry Weight | 9.5 kgs (21 lbs) |
| Warranty | 2 Years (Air Spring) |
