Model:TLA55-900
Usage:

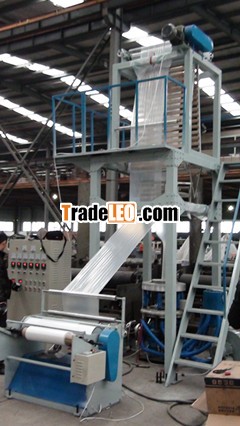

This machine is use to blow PE( LDPE,HDPE,LLDPE) for plastic bags,food packaging or agriculture use.
Specification:
1>.Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitrogen and processed in a precision way, hence it is sound in hardness, durable in corrosion resistance.
2>.The specially designed screw is of sound quality in plasticizing which helps increase the production capacity.
3>.It is applied to blowing the plastic films like ldpe, hdpe, lldpe,
4>.It is widely applied to producing the packing bags for foodstuff, clothing rubbish, vest ones, and industrial packaging and etc.
5>.The machine body is channel steel frame with single rolling friction, which is suitable for blowing high-low pressure PE industrial film and agricultural mulch film.
Main technical details:
Model | A50 | A55 | A60 | A65 |
Diameter of screw | Φ50 | Φ55 | Φ60 | Φ65 |
Diameter of film | 100-600mm | 200-800mm | 300-1000mm | 400-1200mm |
Single-side thickness of film | 0.008-0.1mm | 0.008-0.1mm | 0.008-0.1mm | 0.008-0.1mm |
Max. output | 30kg/h | 40kg/h | 60kg/h | 80kg/h |
L/D | 28:1 | 28:1 | 28:1 | 28:1 |
Power of main motor | 11kw | 15kw | 18.5kw | 22kw |
Power of traction motor | 1.1kw | 1.1kw | 1.1kw | 1.1kw |
Total power | 22kw | 30kw | 37kw | 45kw |
Outline diameter(m) | 3.5×2.5×3.8 | 3.8×2.8×4 | 4.2×3.2×4.6 | 4.5×3.5×5.2 |
Weight(T) | 2 | 2.3 | 2.6 | 3 |
